K4218 Pressure Gauge 0 to 300 psi 4-1/2In MPN:451279SS04LXLL300
Free Shipping
In Stock

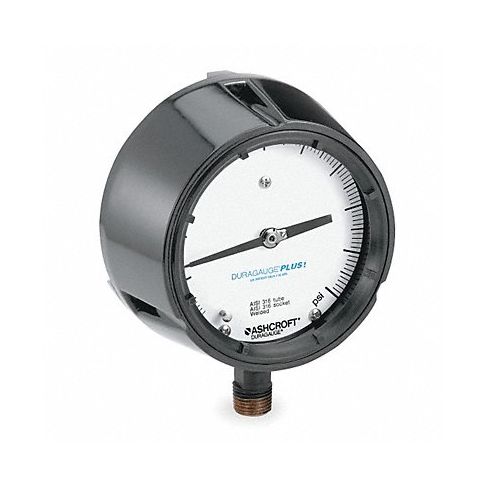

The Ashcroft K4218 Pressure Gauge is an exceptional tool for monitoring pressure in chemical and petroleum processes. With a pressure range of 0 to 300 psi, this gauge is perfect for accurately tracking pressure levels during operations. The solid front/blowout back housing provides added durability and protection against harsh chemicals. It also features a 4-1/2 in dial and Buna N O-ring seal for easy readability. The glycerin-filled model allows for temperature compensation, ensuring that the reading is always accurate, even when temperatures fluctuate. With a 0.5% accuracy, you can trust that this gauge will provide dependable and precise measurements. The Ashcroft K4218 Pressure Gauge is perfect for industrial applications where high accuracy and reliability are necessary. Its compact design makes it easy to use in tight spaces, and the stainless steel wetted parts ensure that it can withstand even the toughest chemical environments.
Top product features:
- Accuracy: +/-0.5%
- Durability: Solid front/blowout back housing
- Material: Stainless steel wetted parts
Top product applications:
- Chemical and petroleum processing industries for monitoring pressure levels.
- Industrial environments where high accuracy and reliability are necessary.
- Tight spaces where a compact design is required.
Technical Specifications
- Item Pressure Gauge
- Gauge Application Process
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/2 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 300
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method Surface
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 2
- Gauge Case Material Phenolic/Thermoplastic
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Glass
- Basic Gauge Lens Material Glass
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options PLUS!(TM) Performance
- Calibration Certificate Included No
- Series 1279SS XLL
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 451279SS04LXLL300
- MPN: 451279SS04LXLL300
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 7:45am UTC Category: Pressure and Vacuum Measuring
