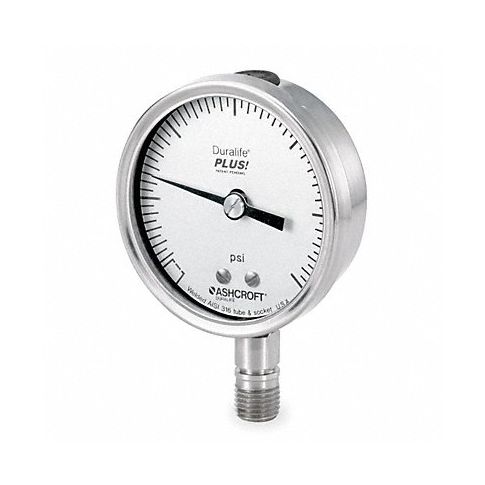

D1019 Compound Gauge 30 Hg to 30 psi 2-1/2In MPN:251009SW02LXLLV/30
SKU
226-CXG-4FTH6
D1019 Compound Gauge 30 Hg to 30 psi 2-1/2In
Provide an overview of Double Sided Tape Heavy Duty for various applications across multiple industries such as construction, automotive, electronics, etc.
Gauge is ideal for use where ambient corrosion is a concern. Designed with stainless steel case and ring that offers excellent resistance to chemical, weather, and corrosion attack.
Technical Specifications
- Item Compound Gauge
- Gauge Application Test
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Stainless Steel
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units in Hg/psi
- Gauge Primary Range Values -30 to 0 to 30
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Compound Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 1/1
- Gauge Case Material 304 Stainless Steel
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options PLUS!(TM) Performance
- Calibration Certificate Included No
- Series 1009
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 251009SW02LXLLV30
- MPN: 251009SW02LXLLV/30
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 6:45am UTC
Category: Pressure and Vacuum Measuring
