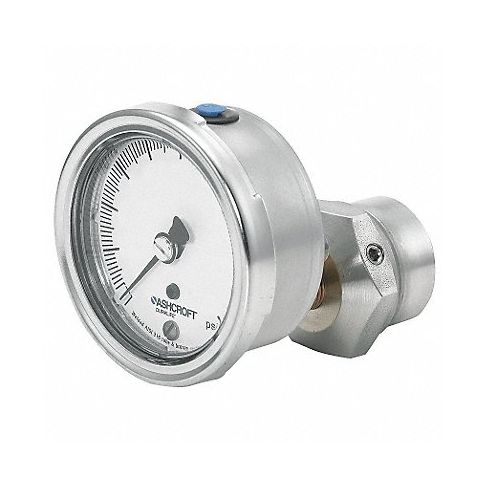

D0989 Pressure Gauge 0 to 30 psi 2-1/2In 1/4In MPN:251009AW02B/310SSLXCG30
Free Shipping
In Stock
A high-quality, top-performing pressure gauge by the brand D0989 boasts an impressive dial face measuring 2.5 inches which offers superior visibility of 0-30 psi pressure readings whether in positive or negative sign, thus guaranteeing accurate information at all times with its easy-to-read numbers while ensuring consistent performance when put under demanding conditions such as vibration shock from machinery use thanks to the sturdy construction which makes it suitable for rough industrial environments where reliability matters a lot while providing cost efficiency along with safety measures making it ideal for compressor operators, technicians and laboratory professionals engaged in chemical industries who require a pressure gauge capable of performing within extreme settings thus simplifying complex tasks by delivering accurate pressure readings promptly hence promoting smooth processes as well as avoidance of any costly accidents.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose with Seal
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Stainless Steel
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Lower Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 30
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 0.5
- Gauge Case Material 304 Stainless Steel
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options PLUS!(TM) Performance
- Calibration Certificate Included No
- Series 1009
- Includes Seal
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 251009AW02B310SSLXCG30
- MPN: 251009AW02B/310SSLXCG30
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Dial Pressure Gauges with Diaphragm Seal
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
