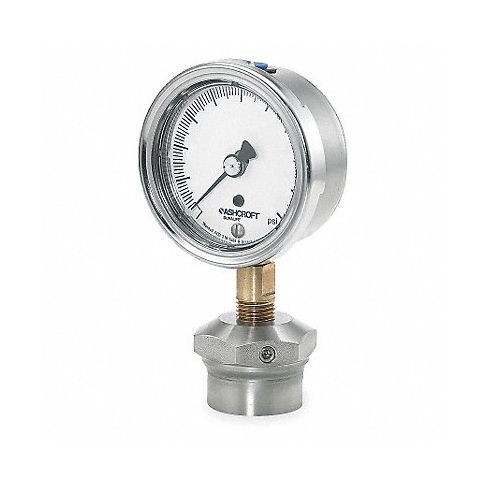

D0988 Pressure Gauge 0 to 60 psi 2-1/2In 1/4In MPN:251009AW02L/310SSLXCG60
Free Shipping
In Stock
The D0988 pressure gauge is a durable and accurate device used to measure the pressure of liquids or gases with a range of 0 to 60 psi. With its stainless steel case, it is designed to withstand harsh environments and resist corrosion caused by chemicals or moisture. Its dual scale reads both percentage of vacuum and absolute pressure, making it ideal for applications requiring quick conversions between the two units of measurement. Additionally, the D0988 gauge has a fluid-filled Bourdon tube that provides consistent accuracy even under fluctuating pressures. Widely used in industries such as oil & gas, power generation, chemical processing, HVAC, water treatment and hydraulics, this gauge is an essential tool for monitoring and controlling pressure levels in various applications. Its easy-to-read display and compact size make it a popular choice for technicians, mechanics, engineers and operators who rely on accurate pressure readings to perform their jobs efficiently.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose with Seal
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Stainless Steel
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 60
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 0.5
- Gauge Case Material 304 Stainless Steel
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options PLUS!(TM) Performance
- Calibration Certificate Included No
- Series 1009
- Includes Seal
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 251009AW02L310SSLXCG60
- MPN: 251009AW02L/310SSLXCG60
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Dial Pressure Gauges with Diaphragm Seal
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
