D0992 Pressure Gauge 0 to 600 psi 2-1/2In MPN:251009SW02LX6B600

Discount: See in Cart
Free Shipping
In Stock
Brand: Ashcroft
Part #: 251009SW02LX6B600
UPC: 783156699525
SKU
226-CXG-4EFU6
$147.49

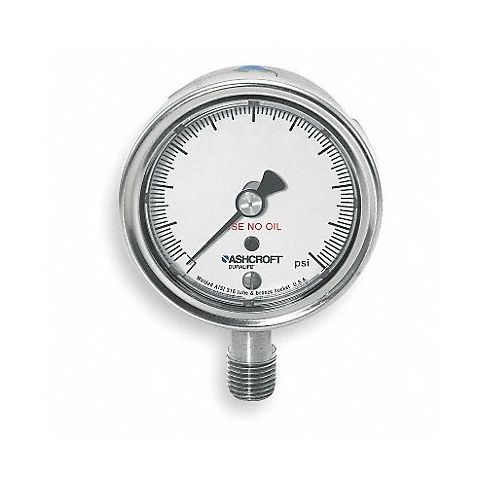

D0992 Pressure Gauge 0 to 600 psi 2-1/2In

Introducing the Ashcroft D0992 stainless steel pressure gauge, designed for accuracy and durability in a wide range of industrial applications. With a nominal dial size of 2 1/2 inches and an ambient operating temperature range of -40 to 150F, this gauge is suitable for oxygen service and ideal for use in air compressors, hydraulic systems, and other critical applications. Its stainless steel case and wetted parts ensure corrosion resistance, while its accurate 1% tolerance provides reliable pressure measurements. With a polished surface and clear polycarbonate lens, this pressure gauge offers excellent visibility for easy readings. Upgrade your measuring tools with Ashcroft's D0992 stainless steel pressure gauge and experience the precision and reliability you need for your business or industrial operations.

Top product features:

  • Stainless Steel Case and Wetted Parts for Corrosion Resistance
  • Ambient Operating Temperature Range (-40 to 150F) for Wide Range of Applications
  • Polycarbonate Lens for Enhanced Visibility and Durability

Top product applications:

  • Measuring Pressure in Industrial Processes such as Air Compressors and Hydraulic Systems
  • Monitoring Pressure in Pneumatic Cylinders and Actuators for Controlled Movement
  • Testing and Calibration of Pressure Equipment in Laboratory and Field Settings
2-1/2" Oxygen Service Gauges
• Accuracy: ±1% Polycarbonate lens Stainless steel housing Connection/internal material: stainless steel 1/4" NPT connection Ambient operating temp. range: -40° to 150°F

Technical Specifications

  • Item Pressure Gauge
  • Gauge Application Oxygen Service Cleaned
  • Gauge Nominal Dial Size 2 1/2 in
  • Basic Gauge Case Material Stainless Steel
  • Basic Gauge Wetted Parts Stainless Steel
  • Gauge Connection Type MNPT
  • Gauge Connection Size 1/4 in
  • Gauge Connection Location Bottom
  • Gauge Primary Range Units psi
  • Gauge Primary Range Values 0 to 600
  • Gauge Accuracy +/-1.00%
  • Pressure and Vacuum Gauge Type Pressure Gauge
  • Gauge Panel Mountable No
  • Liquid Filled No
  • Gauge Primary Range Smallest Graduation 10
  • Gauge Case Material 304 Stainless Steel
  • Gauge Case Color Stainless Steel
  • Basic Gauge Socket Material Stainless Steel
  • Gauge Socket Material 316 Stainless Steel
  • Basic Gauge Sensor Material Stainless Steel
  • Gauge Sensor Material 316 Stainless Steel
  • Gauge Lens Material Polycarbonate
  • Basic Gauge Lens Material Plastic
  • Operating Temp. Range -40 Degrees to 150 Degrees F
  • Gauge Special Options PLUS!(TM) Performance
  • Calibration Certificate Included No
  • Series 1009
  • Manufacturers Warranty Length 5 yr

Manufacturer Details

  • Manufacturer: Ashcroft
  • Condensed Mfg Number: 251009SW02LX6B600
  • MPN: 251009SW02LX6B600

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 9026208000
  • GDS Category Name: Compressed Gas Dial Pressure Gauges
  • GDS Family Name: Pressure and Vacuum Measuring
  • GDS Segment Name: Test Instruments
  • UNSPSC: 41112403
  • UNSPSC Class ID: 24
  • UNSPSC Commodity Name: Pressure measuring and control instruments
  • UNSPSC Commodity ID: 03
  • UNSPSC Commodity Name: Pressure indicators
  • UNSPSC Family ID: 11
  • UNSPSC Family Name: Measuring and observing and testing instruments
  • UNSPSC Segment ID: 41
  • UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B07SQG8L2X

Product info last updated on April 4, 2024 6:44am UTC Category: Pressure and Vacuum Measuring
