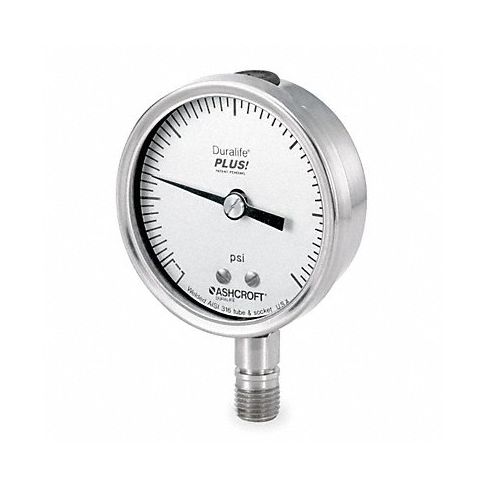

D1022 Vacuum Gauge 30 Hg to 0 3-1/2In 1/4In MPN:351009SW02LXLLVAC
Free Shipping
In Stock
The D1022 Vacuum Gauge from Ashcroft Stainless Steel Gauges with PLUS!? Performance is an ideal choice for measuring vacuum pressure in various applications. Made of high-quality stainless steel, the gauge offers excellent accuracy and durability. With a 1% accuracy rate, it provides reliable and precise measurements. The proprietary design fights vibrations and pulsations, ensuring steady performance even in harsh conditions. Its dry gauges are designed to deliver the benefits of liquid-filled gauges without the risk of leakage or evaporation. Whether you're working in testing or other applications, this vacuum gauge delivers exceptional results. Its ambient operating temperature range of -40 to 150F makes it suitable for various industries and environments. Invest in the D1022 Vacuum Gauge today, and enjoy precise and reliable pressure measurements!
Top product features:
- Stainless steel construction for durability and corrosion resistance
- Precision accuracy within 1% for reliable measurements
- Proprietary design that fights vibrations and pulsations for steady performance
Top product applications:
- Vacuum pressure testing and measurement in various industries including manufacturing, automotive, aerospace, and science
- Monitoring and controlling vacuum levels in processing systems for materials such as glass, plastics, and semiconductors
- Quality control and ensuring proper operation of equipment and systems that require precise vacuum levels
Technical Specifications
- Item Vacuum Gauge
- Gauge Application Test
- Gauge Nominal Dial Size 3 1/2 in
- Basic Gauge Case Material Stainless Steel
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units in Hg
- Gauge Primary Range Values -30 to 0
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Vacuum Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 0.5
- Gauge Case Material 304 Stainless Steel
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options PLUS!(TM) Performance
- Calibration Certificate Included No
- Series 1009
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 351009SW02LXLLVAC
- MPN: 351009SW02LXLLVAC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
