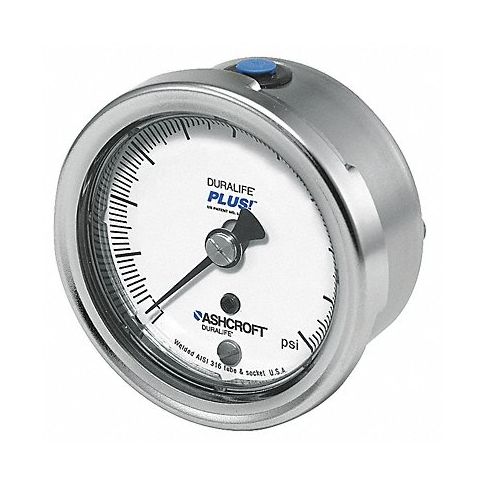

D1021 Pressure Gauge 0 to 160 psi 2-1/2In MPN:251009SW02BXLL160
D1021 Pressure Gauge from Ashcroft is perfect for test applications requiring accuracy and stability in pressure measurement. Made from durable stainless steel, this gauge features a 2 1/2-inch dial size, making it easy to read even in crowded environments. The pressure range of 0 to 160 psi makes it suitable for a wide range of applications, including industrial, commercial and scientific settings. Its proprietary design helps combat vibrations and pulsations, ensuring steady pointer performance. With an ambient operating temperature range of -40 to 150F, this gauge is perfect for use in various climates. Plus! Performance feature delivers accuracy within 1%. Get your D1021 Pressure Gauge today and experience the superior performance and reliability it offers.
Top product features:
- PLUS!? Performance: Provides higher accuracy within 1%.
- Stainless Steel Gauges: Durable and resistant to corrosion.
- Dry Gauge Design: Combats vibration and pulsation for steady pointer performance.
Top product applications:
- Industrial Settings For measuring pressure in industrial systems and processes.
- Research Labs For scientific experiments requiring precise measurement of pressure.
- Quality Control For monitoring and testing the accuracy and performance of equipment, machines or assemblies that involve pressure systems.
Technical Specifications
- Item Pressure Gauge
- Gauge Application Test
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Stainless Steel
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Lower Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 160
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 2
- Gauge Case Material 304 Stainless Steel
- Gauge Primary Range Numbered Graduations 20
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options PLUS!(TM) Performance
- Calibration Certificate Included No
- Series 1009
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 251009SW02BXLL160
- MPN: 251009SW02BXLL160
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 6:44am UTC Category: Pressure and Vacuum Measuring
