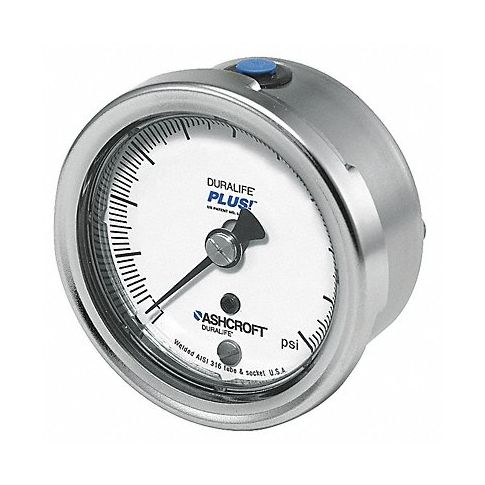

D1021 Pressure Gauge 0 to 15 psi 2-1/2In 1/4In MPN:251009SW02BXLL15
SKU
226-CXG-4EFP9
D1021 Pressure Gauge 0 to 15 psi 2-1/2In 1/4In
D1021 Pressure Gauge is an essential tool designed for accurate measurement of pressure within the range of 0 to 15 psi. Its large dial face ensures easy readability, while its compact size and lightweight design make it ideal for use in tight spaces or when portability is essential. This precision instrument features a high level of accuracy, making it an indispensable tool in industries such as automotive, hydraulics, pneumatics, industrial processing, and manufacturing where precise pressure measurements are crucial. With its economical price point, D1021 Pressure Gauge is a reliable and cost-effective solution for professionals and enthusiasts alike who require accurate pressure monitoring and control.
Stainless Steel Gauges with PLUS!? Performance• Accuracy: ±1% Polycarbonate lens Connection/internal material: stainless steel 1/4" NPT connection Ambient operating temp. range: -40° to 150°FDry gauges provide the steady-pointer performance of liquid-filled gauges. Proprietary design fights vibration and pulsations.
Technical Specifications
- Item Pressure Gauge
- Gauge Application Test
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Stainless Steel
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Lower Back
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 15
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 0.2
- Gauge Case Material 304 Stainless Steel
- Gauge Primary Range Numbered Graduations 1
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Gauge Special Options PLUS!(TM) Performance
- Calibration Certificate Included No
- Series 1009
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 251009SW02BXLL15
- MPN: 251009SW02BXLL15
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 6:44am UTC
Category: Pressure and Vacuum Measuring
