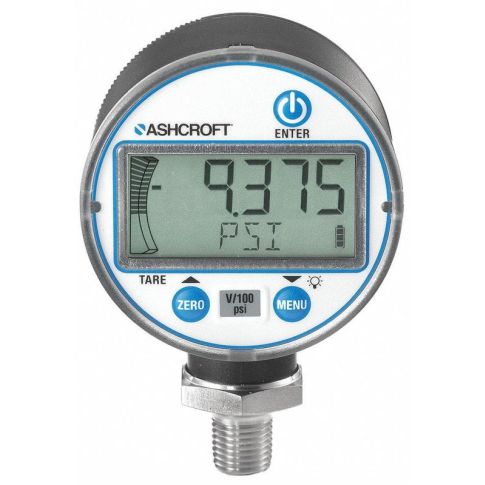

K4243 Pressure Gauge 2-1/2 Dial Size Blk Case MPN:DG2531L0NAM02L15#&V-XCYLM
The K4243 is a superior 2-1/2 Inch pressure gauge that meets the high standards required by professionals across industries dealing with pressures and vacuums. Its durable black case construction ensures longevity while maintaining an impressive level of precision that allows users to obtain accurate readings in pressures ranging from 0-400 psi thanks to its solid brass Bourdon tube and chemical etch dial face. A clear display with easy-to-read markings makes this tool a go-to choice for various applications including HVAC, hydraulics, refrigeration systems, petrochemicals among others while providing unmatched reliability under any condition. Users who require accuracy and dependability in their pressure measurements will find the K4243 indispensable in their test instruments collections.
Technical Specifications
- Digital Pressure and Vacuum Gauge Type Digital Pressure Gauge
- Item Digital Pressure Gauge
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values -15 to 0 to 15
- Digital Gauge Accuracy +/-0.50% Full Scale
- Display LCD
- Number of Display Digits 5
- Socket Material Stainless Steel
- Case Material ABS Polycarbonate
- Case Color Black
- Digital Gauge Display Units bar, ft wc, in Hg, kg/sq cm, kPa, mBar, mm Hg, MPa, psi
- Memory Storage min/max
- Resolution Dependent on Range
- Powered By (2) AA Batteries
- Agency Compliance CE, CR, UL
- Gauge Operating Temp. Range -4 Degrees to 140 Degrees F
- Features Bar Graph Battery Display
- Series 0.50% Accuracy Digital Gauge
- Calibration Certificate No
- Peak Hold Yes
- Includes Alkaline Batteries
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: DG2531L0NAM02L15VXCYLM
- MPN: DG2531L0NAM02L15#&V-XCYLM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Industrial Process and Test Digital Pressure Gau
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
