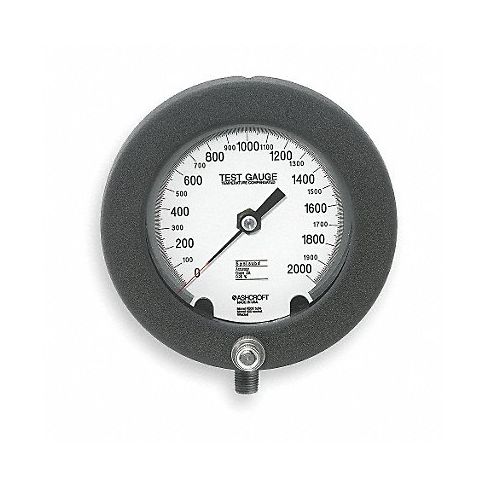

D0815 Pressure Gauge 0 to 2000 psi 6In 1/4In MPN:601082PS02L2MC4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2RFF3
D0815 Pressure Gauge 0 to 2000 psi 6In 1/4In
Acetal plastic sheet, available in an industry standard size of 5/8 thick by 12 long, is a perfect addition to various manufacturing processes where wear-resistant materials are essential due to frequent abrasion or contact with harsh substances. Typical customers in sectors such as automotive, electronics and machine shops can benefit from this product's exceptional durability at an affordable price point when used for machining or cutting, valve stems, bushings, gears, bearings, or many other applications where plastic-metal composites are preferable.
This gauge features aluminum case construction to resist corrosion and impact in demanding applications.
Technical Specifications
- Item Pressure Gauge
- Gauge Application Test
- Gauge Nominal Dial Size 6 in
- Basic Gauge Case Material Aluminum
- Basic Gauge Wetted Parts Monel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 2000
- Gauge Accuracy +/-0.25%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 5
- Gauge Case Material Aluminum
- Gauge Primary Range Numbered Graduations 200
- Gauge Case Color Black
- Basic Gauge Socket Material Monel
- Gauge Socket Material Monel
- Basic Gauge Sensor Material Monel
- Gauge Sensor Material Monel
- Gauge Lens Material Glass
- Basic Gauge Lens Material Glass
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Calibration Certificate Included Yes, NIST with Data
- Series 1082
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 601082PS02L2MC4
- MPN: 601082PS02L2MC4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Dial Test Pressure Gauges
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112406
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Vacuum gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:28pm UTC
Category: Pressure and Vacuum Measuring
