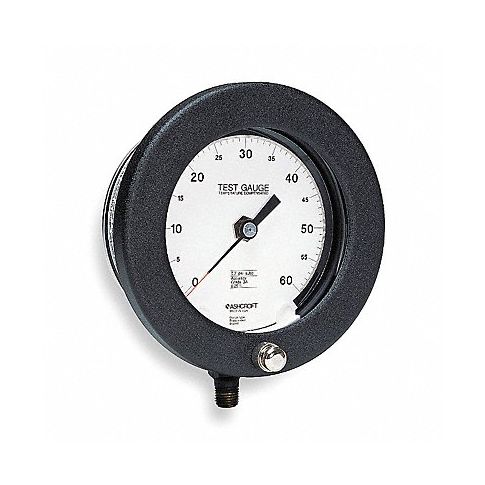

D0811 Pressure Gauge 0 to 60 psi 6In 1/4In NPT MPN:601082AS02L60C4
The D0811 pressure gauge is an essential instrument for detecting the level or pressure of liquids and gases in numerous industrial and commercial processes across diverse industries such as manufacturing, healthcare or chemical production. Its range of up to 60 psi allows it to be used in various applications with varying pressure requirements while its durable construction ensures accuracy over time. The pressure gauge features a large dial display which enables users to monitor readings easily from afar while its precision is reinforced by the inclusion of a bursting disk that safeguards against high-pressure damage to the device or other equipment. Additionally, the 6in long by 1/4 in NPT connection provides compatibility with most connections, making installation straightforward and flexible across diverse contexts. Given its range, precision and reliability, the pressure gauge has become a staple in various industries as an effective tool for detecting and maintaining appropriate pressure levels.
Technical Specifications
- Item Pressure Gauge
- Gauge Application Test
- Gauge Nominal Dial Size 6 in
- Basic Gauge Case Material Aluminum
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 60
- Gauge Accuracy +/-0.25%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 0.2
- Gauge Case Material Aluminum
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Bronze
- Gauge Lens Material Glass
- Basic Gauge Lens Material Glass
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Calibration Certificate Included Yes, NIST with Data
- Series 1082
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 601082AS02L60C4
- MPN: 601082AS02L60C4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Dial Test Pressure Gauges
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112406
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Vacuum gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
