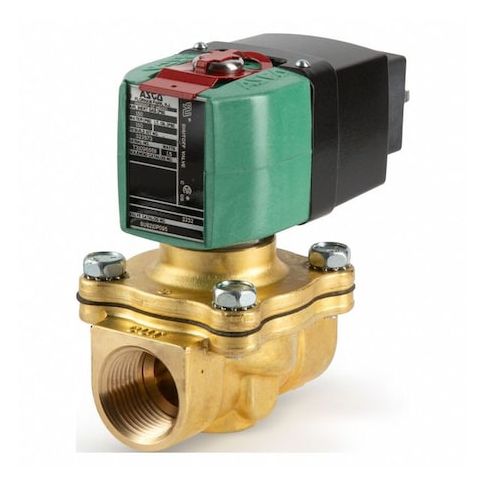

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 100V to 240V AC/DC, Brass, NBR MPN:SU8210P004 100-240

• The ASCO SU8210P004 100-240 is a pilot-operated, normally closed 2-way solenoid valve for controlling flow of liquids and gases. Constructed with a brass body and featuring an NBR seal material. Ambient operating temperature range: 14°F to 140°F. Maximum fluid temperature: 180°F. Compatible with listed fluids and gases within the valve's operating ranges

• refer to materials compatibility and enclosure guidelines in the product specification. It includes a coil with thermal insulation class H, rated for 100V to 240V AC/DC at 60 Hz frequency.

  Key Features:

  • - Body Material: Brass
  • - Seal Material: NBR
  • - Operating Pressure Differential: Minimum 5 psi
  • Maximum 350 psi for air/inert gas, 150 psi for water, 100 psi for light oil
  • - Nominal Pipe Size and Orifice Diameter: 1 in
  • - Valve Operation: Pilot Operated, Normally Closed starting position, 2-Way, 2-Position valve
  • - Coil Enclosure: Conduit Hub with DIN electrical connection and 1/2 in conduit hub
  • - Mounting Orientation: Vertical
  • - Response Time: 1 second
  • - Standards: UL Listed
  • - Wattage: 1.5 W
