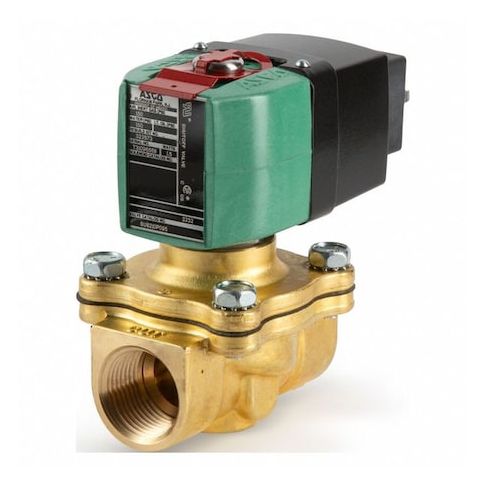

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/8 in Pipe Size, 24V to 120V AC/DC, High Flow MPN:SU8210P033 24-120
Control fluid flow with the ASCO SU8210P033 24-120 solenoid valve, a high-flow, pilot-operated valve designed for use in air, light oil, and water applications. This 2-position, normally open valve features a 3/8 inch nominal pipe size and operates in a wide range of temperatures, making it suitable for various industrial and commercial settings. The valve's high flow rate and corrosion-resistant construction enable efficient and reliable operation in harsh environments, while its compact design and DIN electrical connections simplify installation and maintenance. Ideal for use in HVAC, water treatment, and oil and gas applications, this valve ensures precise control and optimal performance.
Top product features:
- Pilot-operated design allows for high flow rates.
- Provides two distinct flow positions to control fluid flow.
- Constructed with a brass body and utilizes NBR seal material for durability.
Top product applications:
- Air Conditioning and Refrigeration Systems
- Automotive Applications such as Fuel Injectors and Engine Cooling Systems
- Industrial Process Control Systems for Controlling the Flow of Air, Light Oil, and Water
The ASCO SU8210P033 24-120 solenoid valve is a pilot-operated, normally open valve designed for controlling the flow of air, light oil, and water. It features a 3/8 inch nominal pipe size and provides two distinct flow positions. The valve is constructed with a brass body and utilizes NBR seal material. It operates in ambient temperatures ranging from 14°F to 140°F and can handle fluid temperatures up to 180°F. This valve includes a coil rated for 24-120 V AC/DC, 60 Hz. The conduit hub coil enclosure with DIN electrical connections is rated for indoor and outdoor use and for corrosive and hazardous environments.
Key Features:
- - Valve Type: High Flow, Pilot Operated
- - Valve Positions: 2-Position
- - Valve Starting Configuration: Normally Open
- - Nominal Pipe Size: 3/8 in
- - Orifice Diameter: 5/8 in
- - Body Material: Brass with NBR seals
- - Operating Pressure Differential (Maximum): 350 psi Air/Inert Gas, 125 psi Light Oil, 150 psi Water
- - Operating Pressure Differential (Minimum): 0 psi for Air/Inert Gas, Light Oil, Water
- - Ambient Temperature Range: 14°F to 140°F
- - Fluid Temperature Maximum: 180°F
- - Voltage: 24V to 120V AC/DC, 60 Hz
- - Coil Insulation Class: H
- - Wattage: 1.5 W
- - Electrical Connections: DIN with 1/2 in Conduit Hub
- - Coil Enclosure: Conduit Hub
- - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
- - Includes Coil: Yes
- - Inlet and Outlet Connection Type: NPT
- - Response Time: 1 sec
- - Standards: UL Listed
- - Mounting Orientation: Vertical
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 4.40
- Package Height: 2.90
- Package Weight: 2.45
