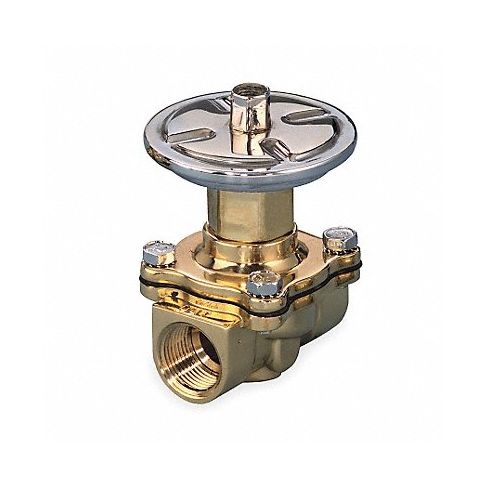

Air Operated Valve 2-Way NC 3/8 In FNPT MPN:P210C093
The Air Operated Valve (AOV) is a reliable and efficient device that uses compressed air as an operating power source to perform on/off function or directional control without requiring any electricity or external power. Its compact design with a 3/8-inch FNPT inlet & outlet size, plus its rugged construction make it ideal for both general purpose applications across various industries such as manufacturing, automation, packaging and production lines that require precise, yet cost-effective means of controlling air flow with the use of compressed air. With adjustable cushion pressure settings ranging from 30 to 120 psi for accurate control, this 2-way valve allows air to be directed in either open or close position depending on the user's preferences while also being lightweight and easy to install, maintain, and clean making it perfect choice over traditional electric valves when reliability and simplicity are paramount.
Technical Specifications
- Item Air Operated Valve
- Pipe Size 3/8 in
- Valve Design 2-Way
- Valve Configuration Normally Closed
- Orifice Dia. 5/8 in
- Coefficient of Volume 2.8
- Min. Operating Pressure Differential 0 psi
- Max. Operating Pressure Differential 125 psi
- Max. Fluid Temp. 180 Degrees F
- Air Inlet 1/8 in FNPT
- Inlet Pressure 30 to 125 psi
- Body Material Brass
- Gasket Material NBR
- Seat Material NBR
- Center Line Pipe Center Size 3 7/16 in
- Overall Length 2 3/4 in
- Overall Width 2 9/32 in
- Overall Height 4 in
Manufacturer Details
- Manufacturer: Asco
- Condensed Mfg Number: P210C093
- MPN: P210C093
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481200060
- GDS Category Name: Air Operated Valves
- GDS Family Name: Shut-Off Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141605
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Solenoid valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
