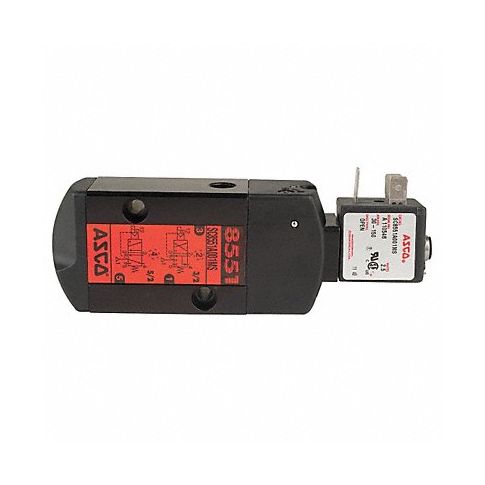

Solenoid Valve 3/2 to 5/2 1/4 In 24VDC MPN:SC8551A001MS
Seco's 3/2-way solenoid valve is an effective solution for regulating flow in liquid or gas control systems with accuracy and precision. With a port size of 1/4, this compact valve can handle high pressures up to 300 psi (20 bar), making it suitable for demanding applications that require precise operation. The solenoid valve features a female threaded M3 inlet/outlet connection for easy installation and compatibility with various compatible parts, such as hoses or fittings. Its compact design allows easy placement in tight spaces without compromising efficiency. Additionally, the solenoid valve operates on 24VDC power, ensuring cost-effective operation and low energy consumption, making it an ideal choice for environments where power conservation is important. Overall, Seco's 3/2-way solenoid valve provides reliable performance in various plumbing applications with accurate and precise fluid or gas flow control.
Technical Specifications
- Item Pilot Solenoid Valve
- Solenoid Valve Product Group Pilot Solenoid Valve
- Valve Ways and Positions 3-Way/2-Position, 4-Way/2-Position, 5-Way/2-Position
- Valve Configuration Universal
- Media - Valves Air, Inert Gases
- Pipe Size - Valves 1/4 in
- Min. Operating Pressure Differential 30 psi
- Max. Operating Pressure Differential Air/Inert Gas 150 psi
- Environmental Rating - Valves Corrosive, Hazardous, Indoor, Outdoor
- Voltage 24V DC
- Coefficient of Volume 0.86
- Body Material - Valves Anodized Aluminum
- Coil Insulation Class F
- Seal Material - Valves NBR, Polyurethane
- Orifice Dia. 1/4 in
- Max. Operating Pressure Differential 150 psi
- Hz 60/50
- Watts 3 W
- NEMA Rating 1, 2, 3, 3S, 4, 4X
- IP Rating 65
- Mounting NAMUR
- Max. Fluid Temp. 140 Degrees F
- Overall Length 7 9/16 in
- Overall Width 1 3/4 in
- Coil Enclosure Open Frame
- Electrical Connection DIN
- Overall Height 1 5/16 in
- Standards CSA Certified, UL Recognized Component
Manufacturer Details
- Manufacturer: Asco
- Condensed Mfg Number: SC8551A001MS
- MPN: SC8551A001MS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809005
- GDS Category Name: Pilot Solenoid Valves
- GDS Family Name: Solenoid Valves and Coils
- GDS Segment Name: Plumbing
- UNSPSC: 40141605
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Solenoid valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
