Butterfly Valve 4 Pipe Size PVC MPN:173730040
SKU
226-CXG-49FD24
Butterfly Valve 4 Pipe Size PVC
Jobber Length Drill Bit: #7, 118 Point is precision drilling tool made from high-speed steel designed for industries such as metalworking, aerospace or construction that require professional results. Its optimized point angles prevent cracking or breaking when used on harder surfaces while providing extra grip during maneuverability without damaging materials being drilled. This versatile bit is ideal for drilling various materials like metals, plastics or composites up to 14 gauges deep.

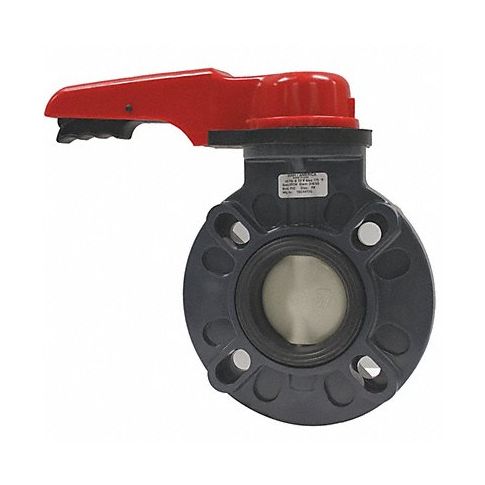

Featuring a PVC body and polypropylene disc for high chemical resistance, this ASAHI butterfly valve has a non-wetted 316 stainless steel shaft for long life. The spherical disc design helps provide increased Cv, maximum sealing, and a high cycle life. Molded body stops and a seat stress relief area help prevent seat overtightening. Valve is self gasketing, no additional gasket is required.
Technical Specifications
- Item Butterfly Valve
- Style Wafer
- Body Material PVC
- Max. Water Pressure 150 psi
- Max. Vacuum 29 in Hg
- Pipe Size 4 in
- Temp. Range 30 Degrees to 175 Degrees F
- Liner Material EPDM
- Disc Material Polypropylene
- Handle Type Lever
- Number of Bolt Holes 8
- Bolt Circle Dia. 7 1/2 in
- Standards NSF-61
- Compliance ASTM D1784 Cell Class 12454A
Manufacturer Details
- Manufacturer: Asahi
- Condensed Mfg Number: 173730040
- MPN: 173730040
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481805090
- GDS Category Name: Butterfly Valves
- GDS Family Name: Flow Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141620
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Butterfly wafer pattern valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
