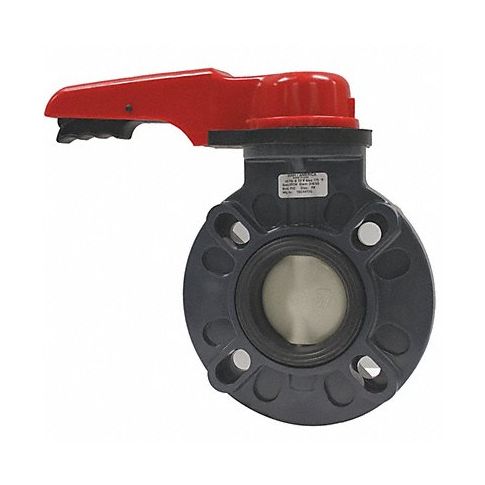

Butterfly Valve 3 Pipe Size PVC MPN:173730030
ASAHI Butterfly Valve 3 Pipe Size PVC is a high-quality valve designed for use in various industrial applications requiring control of flow. Made with a durable PVC body and polypropylene disc, this valve offers excellent resistance to chemicals and harsh environments. The non-wetted stainless steel shaft ensures long-lasting performance, while the spherical disc design maximizes sealing and Cv for smooth operation. Molded body stops and a seat stress relief area prevent seat overtightening, increasing the valve's lifespan. Its self-gasketing feature eliminates the need for additional gaskets, simplifying installation. Ideal for use in various industries such as chemical, pharmaceutical, water treatment, and oil and gas, this butterfly valve provides a reliable solution for flow control.
Top product features:
- PVC body and polypropylene disc for high chemical resistance
- Non-wetted stainless steel shaft for long life
- Spherical disc design provides increased Cv and maximum sealing
Top product applications:
- Chemical processing industry for handling corrosive and hazardous chemicals
- Water treatment plants to control water flow and pressure in pipelines
- Oil and gas refineries to regulate the flow of fluids in pipelines
Technical Specifications
- Item Butterfly Valve
- Style Wafer
- Body Material PVC
- Max. Water Pressure 150 psi
- Max. Vacuum 29 in Hg
- Pipe Size 3 in
- Temp. Range 30 Degrees to 175 Degrees F
- Liner Material EPDM
- Disc Material Polypropylene
- Handle Type Lever
- Number of Bolt Holes 4
- Bolt Circle Dia. 6 in
- Standards NSF-61
- Compliance ASTM D1784 Cell Class 12454A
Manufacturer Details
- Manufacturer: Asahi
- Condensed Mfg Number: 173730030
- MPN: 173730030
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481805090
- GDS Category Name: Butterfly Valves
- GDS Family Name: Flow Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141620
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Butterfly wafer pattern valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
