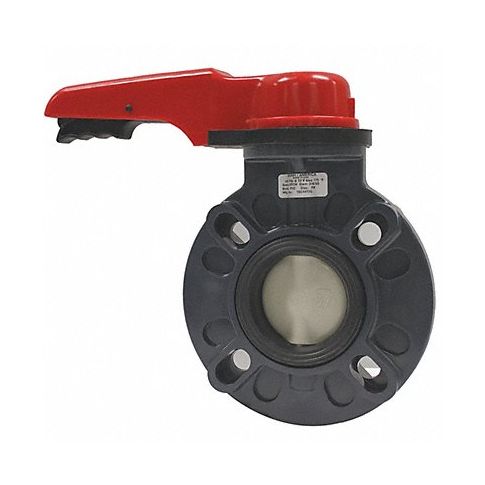

Butterfly Valve 2-1/2 Pipe Size PVC MPN:173730025
SKU
226-CXG-49FD22
Butterfly Valve 2-1/2 Pipe Size PVC
The Butterfly Valve 2-1/2 Pipe Size PVC from Asahi is a high-quality valve designed for controlling flow in various industrial and plumbing applications. With its PVC body and spherical disc design, this valve offers increased Cv, maximum sealing, and a long service life. The non-wetted 316 stainless steel shaft ensures reliable performance even in harsh environments. This butterfly valve is ideal for controlling the flow of air, water, steam, corrosive fluids, and other media. Its self-gasketing feature makes it easy to use and maintain, making it an excellent choice for various applications including chemical, food, pharmaceutical, and HVAC industries.
Top product features:
- PVC body and polypropylene disc for high chemical resistance
- Non-wetted 316 stainless steel shaft for long life
- Self-gasketing feature makes it easy to use and maintain
Top product applications:
- Controlling flow in chemical industries for corrosive fluids
- Water supply systems and wastewater treatment plants
- HVAC system in residential and commercial buildings
Featuring a PVC body and polypropylene disc for high chemical resistance, this ASAHI butterfly valve has a non-wetted 316 stainless steel shaft for long life. The spherical disc design helps provide increased Cv, maximum sealing, and a high cycle life. Molded body stops and a seat stress relief area help prevent seat overtightening. Valve is self gasketing, no additional gasket is required.
Technical Specifications
- Item Butterfly Valve
- Style Wafer
- Body Material PVC
- Max. Water Pressure 150 psi
- Max. Vacuum 29 in Hg
- Pipe Size 2 1/2 in
- Temp. Range 30 Degrees to 175 Degrees F
- Liner Material EPDM
- Disc Material Polypropylene
- Handle Type Lever
- Number of Bolt Holes 4
- Bolt Circle Dia. 5 1/2 in
- Standards NSF-61
- Compliance ASTM D1784 Cell Class 12454A
Manufacturer Details
- Manufacturer: Asahi
- Condensed Mfg Number: 173730025
- MPN: 173730025
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Butterfly Valves
- GDS Family Name: Flow Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141620
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Butterfly wafer pattern valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC
Category: Flow Control Valves
