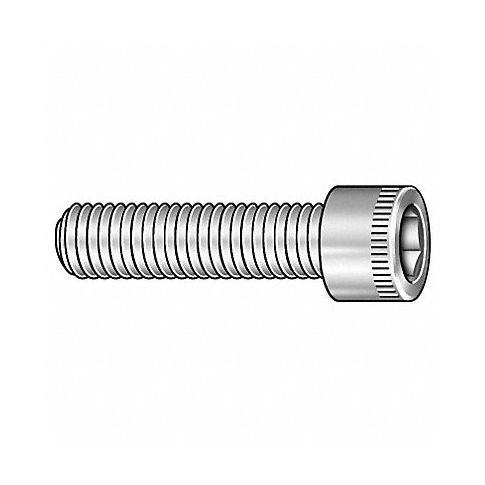

SHCS Steel 1/4 -20 1 3/4in L PK50 MPN:UST235925
The Set Screw (SHCS) is a versatile and widely used hardware component that secures two or more parts together with the help of a nut and washer. Made from steel with 1/4-20 threads, this self-threading screw offers robustness suitable for various industries such as electronics, automotive, aviation, construction, among others. Its overall length of 1-3/4 provides ample grip and torque transfer while the steel construction ensures durability in demanding applications. The set screw's design allows for fine adjustments without causing damage to the material it secures to, making it suitable for delicate assemblies or precision components. Additionally, the SHCS is cost-effective compared to customized fabricated parts and time-consuming welding processes. Overall, this set screw offers versatility, strength and reliability in diverse applications where secure hold is necessary.
Technical Specifications
- Item Socket Head Cap Screw
- Screw Style Socket Head Cap Screw
- System of Measurement Inch
- Screw Head Type Cylindrical
- Basic Material Steel
- Material Grade Alloy Steel
- Dia./Thread Size 1/4"-20
- Length 1 3/4 in
- Fastener Finish Armor Coat
- Fastener Thread Type UNC (Coarse)
- Class 12.9
- Drive Type Hex Socket
- Drive Size 3/16 in
- Thread Style Partially Threaded
- Thread Direction Right Hand
- Min. Thread Length 1 in
- Thread Length 1"
- Head Height 0.25 in
- Thread Dia. 1/4 in
- Vented Hole Size Not Vented
- Head Dia. 0.375 in
- Temp. Range - 20 Degrees F to 400 Degrees F
- Rockwell Hardness HRC 39 to 45
- Min. Tensile Strength 180,000 psi
- Fastener Industry Standards ASME B18.3, ASTM A574
Manufacturer Details
- Manufacturer: Armor Coat
- Condensed Mfg Number: UST235925
- MPN: UST235925
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318158045
- GDS Category Name: Socket Head Cap Screws
- GDS Family Name: Socket Screws and Set Screws
- GDS Segment Name: Fasteners
- UNSPSC: 31161501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Screws
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Cap screws
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
