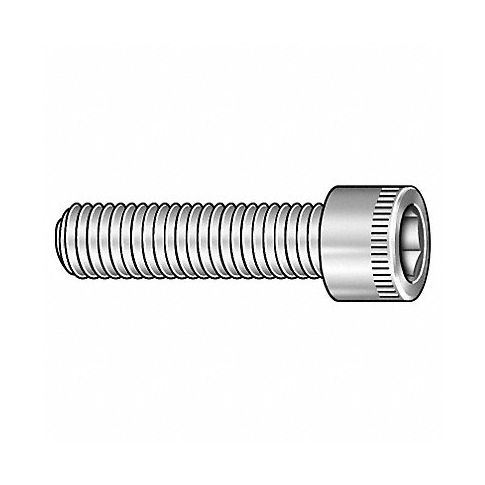

SHCS Steel 1/4 -20 1 1/2in L PK50 MPN:UST235924
SHCS Steel 1/4-20 1 1/2in L PK50 is a high-quality fastening solution suitable for various applications requiring the use of set screws. Manufactured from high-strength steel, this socket head cap screw is designed to deliver reliable performance even in demanding environments with repeated load bearing requirements. The slotted head design ensures simple adjustment while its hexagonal drive slot ensures maximum grip for optimal torque and smooth operation. With a length of 1.5 inches and an overall length of 2 inches, this set screw offers excellent reach and clearance while its quarter-inch diameter provides adequate holding power. Ideal for uses in industries such as automotive or general hardware assembly, the SHCS Steel 1/4-20 1 1/2in L PK50 is an ideal investment for those seeking a cost-effective and dependable set screw solution.
Technical Specifications
- Item Socket Head Cap Screw
- Screw Style Socket Head Cap Screw
- System of Measurement Inch
- Screw Head Type Cylindrical
- Basic Material Steel
- Material Grade Alloy Steel
- Dia./Thread Size 1/4"-20
- Length 1 1/2 in
- Fastener Finish Armor Coat
- Fastener Thread Type UNC (Coarse)
- Class 12.9
- Drive Type Hex Socket
- Drive Size 3/16 in
- Thread Style Partially Threaded
- Thread Direction Right Hand
- Min. Thread Length 1 in
- Thread Length 1"
- Head Height 0.25 in
- Thread Dia. 1/4 in
- Vented Hole Size Not Vented
- Head Dia. 0.375 in
- Temp. Range - 20 Degrees F to 400 Degrees F
- Rockwell Hardness HRC 39 to 45
- Min. Tensile Strength 180,000 psi
- Fastener Industry Standards ASME B18.3, ASTM A574
Manufacturer Details
- Manufacturer: Armor Coat
- Condensed Mfg Number: UST235924
- MPN: UST235924
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318158045
- GDS Category Name: Socket Head Cap Screws
- GDS Family Name: Socket Screws and Set Screws
- GDS Segment Name: Fasteners
- UNSPSC: 31161501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Screws
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Cap screws
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
