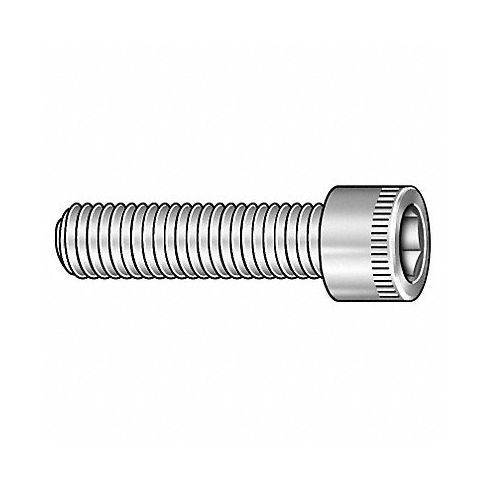

SHCS Steel 1/4 -20 3/4in L PK50 MPN:UST235920
The set screw (SHCS) is an essential hardware component for securely fastening various materials together. Made from steel with 1/4-20 threads, it offers robustness and durability suitable for applications in industries such as electronics, automotive, aerospace, construction and more. Its overall length of 3/4 provides sufficient grip and torque transfer to secure components tightly without damaging the material. Additionally, the steel construction ensures resistance against wear and tear, adding to its long-lasting quality. The SHCS's design allows for fine adjustments, making it ideal for precise applications such as delicate assemblies or calibration works. Lastly, compared to customized fabricated parts or welding processes, the set screw offers cost efficiency while reducing lead times and tooling costs. Overall, this SHCS is a reliable and versatile hardware solution in diverse industries where secure holding is vital.
Technical Specifications
- Item Socket Head Cap Screw
- Screw Style Socket Head Cap Screw
- System of Measurement Inch
- Screw Head Type Cylindrical
- Basic Material Steel
- Material Grade Alloy Steel
- Dia./Thread Size 1/4"-20
- Length 3/4 in
- Fastener Finish Armor Coat
- Fastener Thread Type UNC (Coarse)
- Class 12.9
- Drive Type Hex Socket
- Drive Size 3/16 in
- Thread Style Fully Threaded
- Thread Direction Right Hand
- Min. Thread Length 3/4 in
- Thread Length 3/4"
- Head Height 0.25 in
- Thread Dia. 1/4 in
- Vented Hole Size Not Vented
- Head Dia. 0.375 in
- Temp. Range - 20 Degrees F to 400 Degrees F
- Rockwell Hardness HRC 39 to 45
- Min. Tensile Strength 180,000 psi
- Fastener Industry Standards ASME B18.3, ASTM A574
Manufacturer Details
- Manufacturer: Armor Coat
- Condensed Mfg Number: UST235920
- MPN: UST235920
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318158045
- GDS Category Name: Socket Head Cap Screws
- GDS Family Name: Socket Screws and Set Screws
- GDS Segment Name: Fasteners
- UNSPSC: 31161501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Screws
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Cap screws
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
