Tumbler Switch EDSC Series 2 Gangs 3-Way MPN:EDSC275-R3W
Free Shipping
In Stock
The premium quality, tamper resistant EDSC series tumbler switch offers exceptional reliability and style for effortless control over electrical devices in numerous projects requiring convenient 2 gangs, 3-way functionality. This sleek switch delivers smooth operation and top safety features making it ideal for hazardous locations demanding maximum security while providing instant visual impact. With its stylish design and diverse applications, this tumbler switch is the perfect choice for industries seeking reliable control over electrical devices that meet their specific needs while enhancing aesthetics. The key specifications include ease of operation, smooth control, top safety features, reliability, and instant visual impact - making it an essential choice in numerous projects within electrical applications.
Technical Specifications

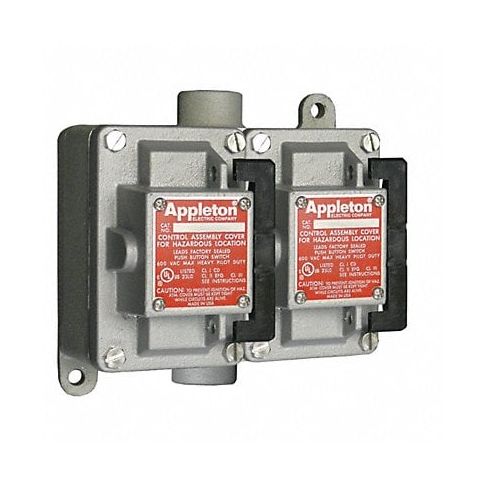

- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDSC
- Number of Gangs 2
- Switch Type 3-Way
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Feed-Thru
- Hub Size 3/4 in
- Mounting Mounting Holes/Hubs
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 6 3/16 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC275R3W
- MPN: EDSC275-R3W
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509035
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
