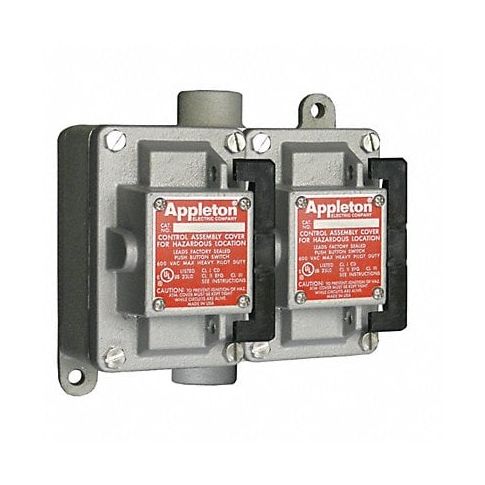

Tumbler Switch EDSC Series 2 Gang 2-Pole MPN:EDSC275-R2
Free Shipping
In Stock
Introducing the Appleton Electric Tumbler Switch EDSC Series - a high-performance, heavy-duty switch designed for safety in hazardous environments. This switch is specifically engineered to prevent arcing during connect and disconnect operation of lighting and light power loads, making it ideal for use in chemical plants, refineries, and other process industries where ignitable vapors, gases, and combustible dusts are present. With a front-operated design, 2 gangs, and 2-pole switch type, this product provides exceptional performance and reliability. Its versatile applications make it the perfect choice for a wide range of industries and uses. Invest in Appleton Electric's Tumbler Switch EDSC Series today and ensure safe and efficient operations in your facility.
Top product features:
- Designed for safety in hazardous environments
- Prevents arcing during connect and disconnect operation
- Suitable for use in chemical plants, refineries, and other process industries
Top product applications:
- Use in hazardous environments with ignitable vapors, gases, and combustible dusts
- Industrial lighting and power installations
- Classified areas where safety is a priority
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDSC
- Number of Gangs 2
- Switch Type 2-Pole
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Feed-Thru
- Hub Size 3/4 in
- Mounting Mounting Holes/Hubs
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 6 3/16 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC275R2
- MPN: EDSC275-R2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509035
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
