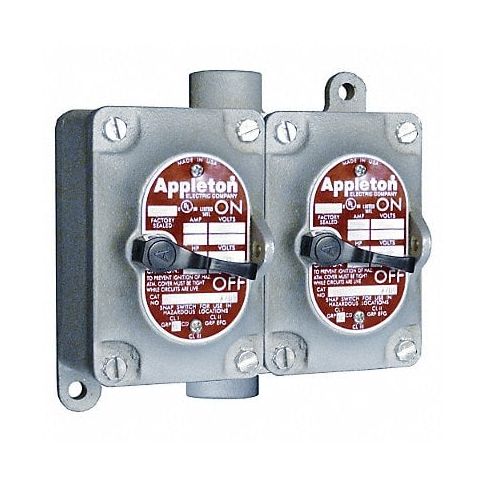

Tumbler Switch EDSC Series 2 Gangs 3-Way MPN:EDSC275-F3W
Free Shipping
In Stock
Our high-quality EDSC series tumbler switch is specifically designed for 2 gangs and 3-way application with exceptional reliability and performance. This premium grade switch offers effortless control over various electrical devices, providing a sleek and polished look while delivering outstanding durability. The tamper resistant mechanism provides top security against unauthorized access while minimizing any risks associated with short circuiting. With its easy installation and smooth operations, this tumbler switch is ideal for various home or commercial projects including bathrooms, corridors, storerooms, and offices among others. Choose from a wide range of colors and finishes available to match your personal style, creating an instant visual impact while enhancing your surroundings aesthetically. Try our top-rated EDSC series tumbler switch today and enjoy the ease of controlling your electrical devices like never before!
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDSC
- Number of Gangs 2
- Switch Type 3-Way
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Feed-Thru
- Hub Size 3/4 in
- Mounting Mounting Holes
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 6 3/16 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC275F3W
- MPN: EDSC275-F3W
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
