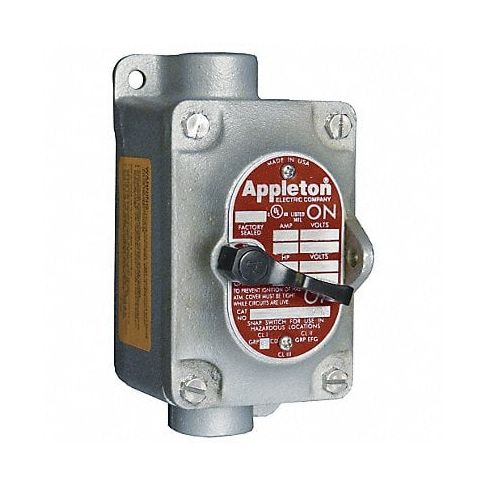

Tumbler Switch EDSC Series 1 Gang 3-Way MPN:EDSC2130
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-13v094
Tumbler Switch EDSC Series 1 Gang 3-Way
Introducing Appleton Electric's Tumbler Switch EDSC Series 1 Gang 3-Way, designed to offer top-notch safety and durability for lighting and light power loads in industrial settings. With its front operated design and 1 gang function, this switch is ideal for classified areas where ignitable vapors, gases, and combustible dusts are present. The tumbler mechanism ensures reliable performance and long-lasting use, while the 3-way functionality offers versatile control options. Make the smart choice for your industrial needs with Appleton Electric's Tumbler Switch EDSC Series.
Top product features:
- Front Operated Design: The front operated design allows for easy access and operation of the switch without the need to remove covers or panels. This feature enhances safety and convenience in industrial settings where quick and efficient control is essential.
- 3-Way Functionality: The 3-way functionality provides versatile control options, allowing users to toggle lighting and power loads in multiple configurations, such as on/off/on or master/slave/off settings. This feature offers greater flexibility for a wide range of industrial applications.
- Tumbler Mechanism: The tumbler mechanism ensures reliable performance by preventing arcing during connect and disconnect operations. This feature enhances safety in classified areas where ignitable vapors, gases, and combustible dusts are present, providing peace of mind for users working in such environments.
Top product applications:
- Industrial Lighting Control: The Tumbler Switch EDSC Series 1 Gang 3-Way is ideal for controlling lighting and power loads in industrial settings where reliable performance and safety are essential.
- Classified Areas: This switch is suitable for use in classified areas where ignitable vapors, gases, and combustible dusts are present, providing a safe option for workers and equipment in hazardous environments.
- Versatile Control Options: With its 3-Way functionality, the Tumbler Switch EDSC Series offers versatile control options, making it suitable for various applications requiring on/off or master/slave/off configurations in industrial settings.
This tumbler switch is designed to help prevent arcing during connect and disconnect operation of lighting and light power loads. It is suitable for installation in chemical plants, refineries, and other process industries. Use in classified areas where ignitable vapors, gases, and combustible dusts are present.
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDSC
- Number of Gangs 1
- Switch Type 3-Way
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Feed-Thru
- Hub Size 3/4 in
- Mounting Mounting Holes
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 3 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC2130
- MPN: EDSC2130
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
