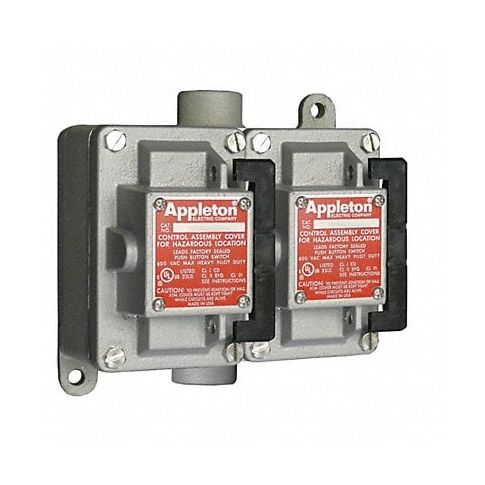

Tumbler Switch EDSC Series 2 Gangs 4-Way MPN:EDSC210-R4W
Free Shipping
In Stock
Introducing the Tumbler Switch EDSC Series 2 Gangs 4-Way from Appleton Electric - designed to cater to your diverse switching requirements! Perfect for installation in hazardous locations where ignitable vapors, gases, and combustible dusts are present, this heavy-duty switch is ideal for industrial and process industries. With front-operated operation, it eliminates the need for hands or tools to access screw terminal connections. Additionally, its compact design provides easy installation in tight spaces. Its rugged construction ensures long-lasting performance even in harsh conditions. Use this switch to connect or disconnect lighting and power loads effortlessly, safely, and reliably. Upgrade to the Tumbler Switch EDSC Series 2 Gangs 4-Way today and experience seamless operation!
Top product features:
- Compact Design for easy installation in tight spaces
- Rugged Construction ensures long-lasting performance even in harsh conditions
- Suitable for Classified Areas designed to prevent ignitable vapors, gases, and combustible dusts
Top product applications:
- Chemical Plants for managing and controlling lighting and power loads
- Refineries for seamless switching of lighting and power sources in harsh environments
- Other Process Industries for handling multiple loads and minimizing the risk of arc flash in classified areas
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDSC
- Number of Gangs 2
- Switch Type 4-Way
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Feed-Thru
- Hub Size 1 in
- Mounting Mounting Holes/Hubs
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 6 3/16 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC210R4W
- MPN: EDSC210-R4W
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Switches
