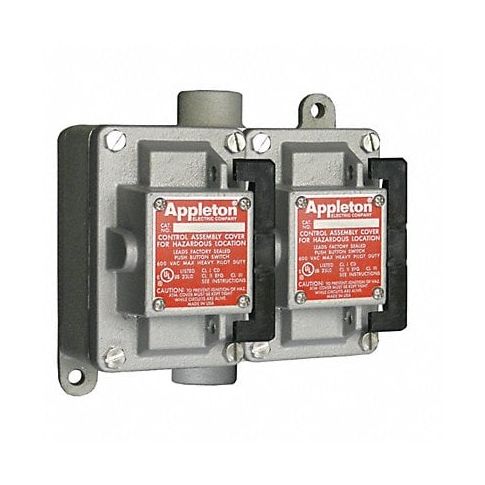

Tumbler Switch EDSC Series 2 Gang 2-Pole MPN:EDSC210-R2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-13v088
Tumbler Switch EDSC Series 2 Gang 2-Pole
The Tumbler Switch EDSC Series from Appleton Electric is designed for use in hazardous areas where ignitable vapors, gases, and combustible dusts are present. This 2-pole, 2-gang switch helps prevent arcing during connect and disconnect operation of lighting and light power loads in chemical plants, refineries, and process industries. Made with a front-operated tumbler design for easy accessibility and safety, this product is ideal for classified areas where durability and reliability are essential. With Appleton Electric's commitment to quality and performance, the Tumbler Switch EDSC Series ensures optimal safety and efficiency in demanding environments.
Top product features:
- Front-operated tumbler design for easy accessibility and safety
- Suitable for use in hazardous areas with ignitable vapors, gases, and combustible dusts
- Helps prevent arcing during connect and disconnect operation of lighting and light power loads
Top product applications:
- Chemical plants
- Refineries
- Process industries
This tumbler switch is designed to help prevent arcing during connect and disconnect operation of lighting and light power loads. It is suitable for installation in chemical plants, refineries, and other process industries. Use in classified areas where ignitable vapors, gases, and combustible dusts are present.
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDSC
- Number of Gangs 2
- Switch Type 2-Pole
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Feed-Thru
- Hub Size 1 in
- Mounting Mounting Holes/Hubs
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 6 3/16 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC210R2
- MPN: EDSC210-R2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC
