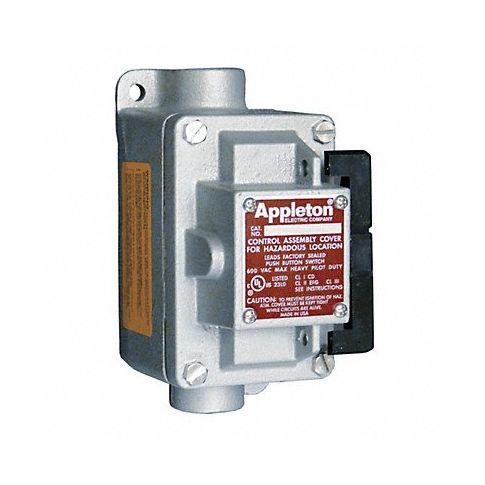

Tumbler Switch EDSC Series 1 Gang 2-Pole MPN:EDSC175-R2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-13v076
Tumbler Switch EDSC Series 1 Gang 2-Pole
Appleton Electric's Tumbler Switch EDSC Series is an ideal solution for ensuring safety in hazardous environments. This tumbler switch is designed specifically to prevent arcing during connect and disconnect operation of lighting and light power loads, making it suitable for use in chemical plants, refineries, and other process industries. Its front-operated design and 1-gang, 2-pole configuration make it easy to use and versatile enough for a range of applications. With its high-quality materials and reliable construction, the Tumbler Switch EDSC Series provides peace of mind that your equipment will function safely and reliably in even the most demanding environments.
Top product features:
- Designed to prevent arcing during connect/disconnect operations
- Suitable for use in hazardous environments
- Front-operated design for ease of use
Top product applications:
- Use in classified areas where ignitable vapors, gases, and combustible dusts are present
- Installation in chemical plants, refineries, and other process industries
- Ensuring safety during connect and disconnect operations of lighting and light power loads
This tumbler switch is designed to help prevent arcing during connect and disconnect operation of lighting and light power loads. It is suitable for installation in chemical plants, refineries, and other process industries. Use in classified areas where ignitable vapors, gases, and combustible dusts are present.
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDSC
- Number of Gangs 1
- Switch Type 2-Pole
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Feed-Thru
- Hub Size 3/4 in
- Mounting Mounting Holes/Hubs
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups B, C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 3 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC175R2
- MPN: EDSC175-R2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509035
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 12:32pm UTC
