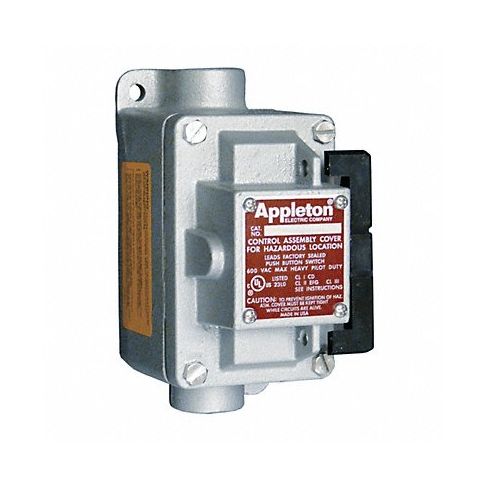

Tumbler Switch EDSC Series 1 Gang 3-Way MPN:EDSC150-R3W

This tumbler switch is designed to help prevent arcing during connect and disconnect operation of lighting and light power loads. It is suitable for installation in chemical plants, refineries, and other process industries. Use in classified areas where ignitable vapors, gases, and combustible dusts are present.

Technical Specifications

• Item Tumbler Switch
• Type of Operator Front Operated
• Series EDSC
• Number of Gangs 1
• Switch Type 3-Way
• Amps 20 A
• Voltage 120 to 277V AC
• HP 1 hp @ 120V AC, 2 hp @ 240V AC
• Hub Style Feed-Thru
• Hub Size 1/2 in
• Mounting Mounting Holes/Hubs
• Legend Markings On/Off
• Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
• NEMA Rating 7C, 7D, 9E, 9F, 9G
• Standards UL 1203, UL 894
• Safety Rating Class I, Division 1, Groups B, C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
• Height 4 5/8 in
• Width 3 in
• Depth 4 11/16 in
• Body Material Malleable Iron

Manufacturer Details

• Manufacturer: Appleton Electric
• Condensed Mfg Number: EDSC150R3W
• MPN: EDSC150-R3W

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509035
• GDS Category Name: Hazardous Location Tumbler Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121104
• UNSPSC Class ID: 11
• UNSPSC Commodity Name: Distribution and control centers and accessories
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Motor control centers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
