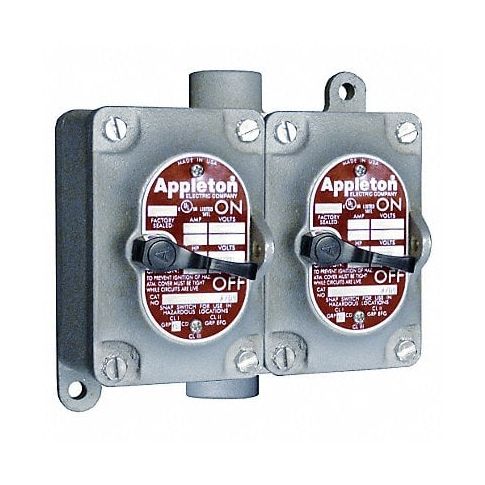

Tumbler Switch EDSC Series 2 Gangs 4-Way MPN:EDSC1240
Free Shipping
In Stock
The Tumbler Switch EDSC Series 2 Gangs 4-Way is an ideal solution for professionals requiring high-quality, reliable switches designed to withstand the demands of harsh environments. This versatile switch features a compact, durable design that offers IP66 sealing against water and dust intrusion making it suitable for both indoor and outdoor use. With a rated voltage of 12 or 24V DC, the switch is capable of handling high-powered devices and provides clear illumination for low light conditions. The 4-way functionality allows for precise control over multiple circuits or devices, making it a popular choice in industries such as agricultural, construction, industrial, and marine. Overall, this Tumbler Switch EDSC Series is an essential tool for any professional seeking reliable performance and durability in their electrical equipment.
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDSC
- Number of Gangs 2
- Switch Type 4-Way
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Feed-Thru
- Hub Size 1/2 in
- Mounting Mounting Holes
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 6 3/16 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC1240
- MPN: EDSC1240
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
