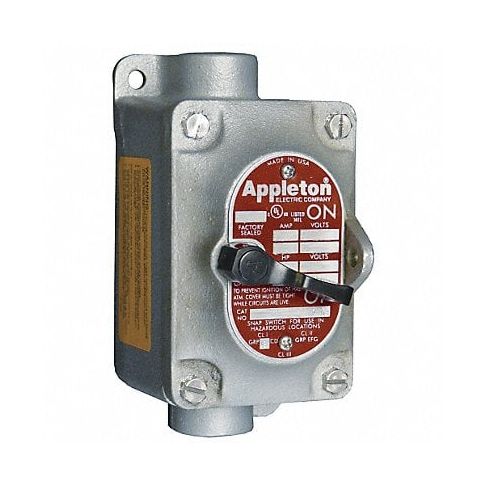

Tumbler Switch EDSC Series 1 Gang 4-Way MPN:EDSC1140
The Tumbler Switch EDSC Series is an essential device in environments where ignitable substances are present and require dependable electrical switching solutions to prevent accidents due to power fluctuations or surges. Its durable construction of stainless steel ensures it can withstand tough conditions while its versatility in operating on both AC and DC voltage allows for flexibility when designing power systems. Additionally, its high-temperature and pressure resistance capabilities make it suitable for use in demanding industries such as petrochemical plants or marine vessels where precise control of electrical loads is necessary to maintain optimal productivity while minimizing downtime due to electrical malfunctions. The Tumbler Switch EDSC Series meets industry standards for explosion-proof and dust ignition-proof certifications, providing users with added assurance of its safety features.
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDSC
- Number of Gangs 1
- Switch Type 4-Way
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Feed-Thru
- Hub Size 1/2 in
- Mounting Mounting Holes
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 3 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC1140
- MPN: EDSC1140
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
