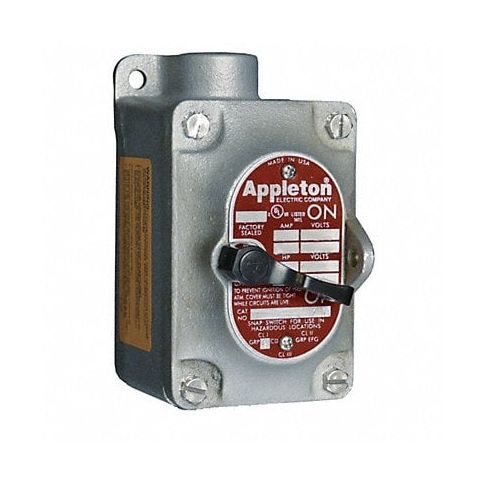

Tumbler Switch EDS Series 1 Gang 2-Pole MPN:EDS175-F23
Free Shipping
In Stock
The premium quality Edison Style tumbler switch from our portfolio is crafted with cutting edge materials to cater to electrical control applications. Designed for heavy-duty usage and long lasting durability with a metal casing that provides UV, flame, chemical resistance, this device meets multiple utility demands of residential or commercial sectors. Tumbler switches are used in a range of industries such as telecom, instrumentation, and electrical applications, requiring switches that can handle the load for control panels, signal systems or machinery, boasting quick installation with its standard sizing while offering high performance compared to other brands. With its two pole double throw configuration providing momentary contact operation suitable for use in applications such as pilot light indicator or fan speed controller, the switch provides versatile control options. This tamper-resistant, single action switch is constructed from corrosion resistant materials and provides increased UV stability ideal for outdoor use. With a sleek polished brass appearance blending seamlessly into your panels while offering reliable performance, it's the preferred choice for interior design professionals or home owners aiming to upgrade their electrical components with premium features at cost effective prices.
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDS
- Number of Gangs 1
- Switch Type 2-Pole
- Amps 30 A
- Voltage 120 to 277V AC
- HP 2 hp @ 120/240V AC
- Hub Style Dead-End
- Hub Size 3/4 in
- Mounting Mounting Holes
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups B, C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 3 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDS175F23
- MPN: EDS175-F23
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
