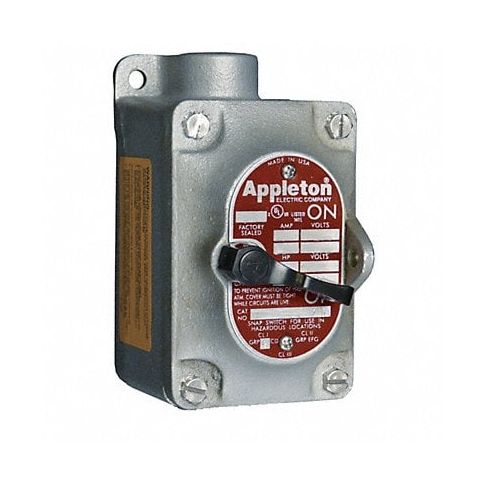

Tumbler Switch EDS Series 1 Gang 2-Pole MPN:EDS175-F2
Free Shipping
In Stock
The EDS series of tumbler switches offer a reliable and durable solution for controlling power and lights, featuring 1 gang, 2 pole operation allowing for switching up to two circuits simultaneously. These heavy-duty switches are made to withstand challenging conditions such as vibration, impacts or corrosion, making them suitable for demanding applications in marine, automotive, and outdoor environments. With multiple terminations like slide blade, rocker, or push button available, these switches cater to a variety of switching needs while providing efficient and secure control through their spring-return feature that ensures the switch returns to its neutral position. Moreover, their compact design allows for effortless installation in tight spaces across residential and commercial applications such as cabinets, outlets, or panelboards. Overall, tumbler switches offer a cost-effective solution without needing complex circuitry like relays for seamless control over electrical circuits.
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDS
- Number of Gangs 1
- Switch Type 2-Pole
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Dead-End
- Hub Size 3/4 in
- Mounting Mounting Holes
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups B, C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 3 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDS175F2
- MPN: EDS175-F2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
