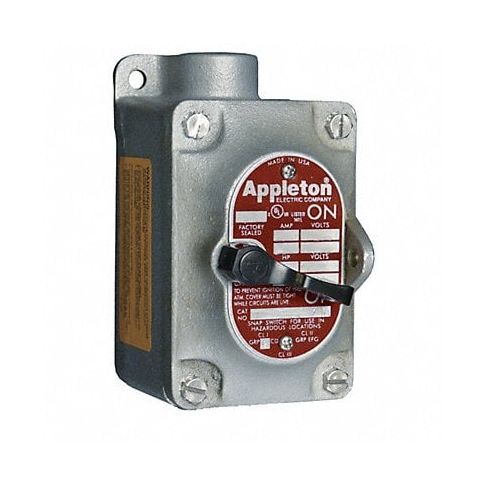

Tumbler Switch EDS Series 1 Gang 2-Pole MPN:EDS150-F2
Free Shipping
In Stock
The Tumbler switch is an electromechanical device ideal for controlling power and lights on appliances or machines with its 1 gang, 2 poles design which allows switching of up to two circuits. Constructed from heavy-duty materials, it can withstand various applications in environments with vibrations, impacts or corrosive conditions making them suitable for marine, automotive or outdoor installations. They are available in various terminations like slide blade, rocker or push button options depending on the specific switching need while reducing the risk of accidental contact with its spring return feature that brings the switch back to its neutral position. Their compact size allows easy installation into tight spaces making them ideal for commercial or residential uses such as cabinets, outlets or panelboards. Tumbler switches are a cost-effective and durable solution providing simple and efficient control of electrical circuits without the need for complicated circuitry like relays.
Technical Specifications
- Item Tumbler Switch
- Type of Operator Front Operated
- Series EDS
- Number of Gangs 1
- Switch Type 2-Pole
- Amps 20 A
- Voltage 120 to 277V AC
- HP 1 hp @ 120V AC, 2 hp @ 240V AC
- Hub Style Dead-End
- Hub Size 1/2 in
- Mounting Mounting Holes
- Legend Markings On/Off
- Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
- NEMA Rating 7C, 7D, 9E, 9F, 9G
- Standards UL 1203, UL 894
- Safety Rating Class I, Division 1, Groups B, C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
- Height 4 5/8 in
- Width 3 in
- Depth 4 11/16 in
- Body Material Malleable Iron
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDS150F2
- MPN: EDS150-F2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
