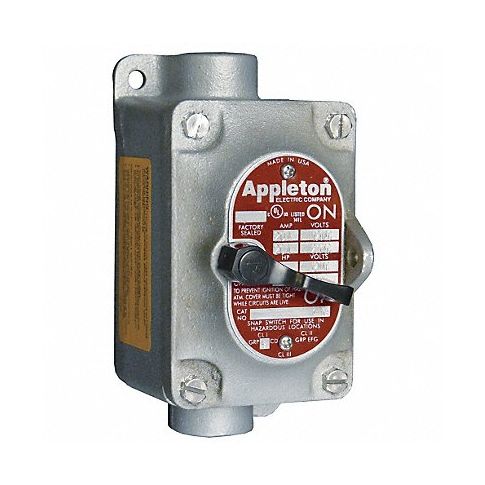

Manual Motor Starter FeedThru Hub 3/4 2P MPN:EDSC21102
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-13f866
Manual Motor Starter FeedThru Hub 3/4 2P
The manual motor starter is an essential component utilized by electrician professionals during the installation, maintenance, or repair of motors in commercial, residential and industrial environments that require automated motor control systems. This versatile product comes equipped with a feed-through hub ensuring efficient transfer of power between the motor and control components thus providing a secure and reliable solution for numerous application scenarios such as HVAC systems, pumps, elevators, conveyors, and machinery with variable speed demands without requiring extra wiring or controls thus offering cost savings in projects while maintaining consistent performance expectations.
Hazardous Location Manual Motor Starters and SwitchesFeature Eaton internal starters. Motor starters require 1 thermal unit, sold separately. Enclosure dim.: 7.03"H x 3.72"W x 5.31"D. NEMA rated 3, 7CD, and 9EFG. UL Listed for Class I, Div. 1 and 2, Class II, Div. 1 and 2, and Class III.
Technical Specifications
- Item Motor Starter
- Amps AC 20 A
- Enclosure NEMA Rating 3, 7CD, 9EFG
- Hub Style Feed-Thru
- Hub Size 3/4 in
- Number of Gangs 1
- Description/Special Features Cast In Hubs. Interchangeable Heater Units.
- No. of Thermal Units Required 1
- Number of Poles 2
- Starter Type Manual
- Height 7.03 in
- Width 3.72 in
- Depth 5.31 in
- HP @ 120V 1 hp
- HP @ 240V 1 hp
- HP @ 32VDC 1/4 hp
- HP @ 120VDC 1 hp
- HP @ 240VDC 1 hp
- HP @ 115VDC 1 hp
- HP @ 230VDC 1 hp
- Standards UL508, UL 698, UL 1203, C22.2 No. 14-M, C22.2 No. 25, C22.2 No. 30, UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Groups E, F, G; and Class III
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDSC21102
- MPN: EDSC21102
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Manual Motor Switches and Start
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 12:32pm UTC
