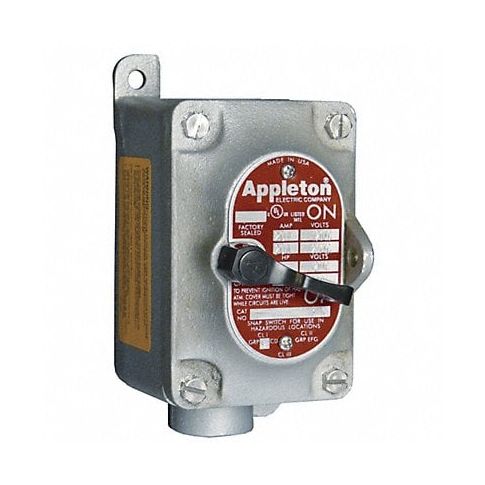

Motor Switch 20A 600V Dead-End Hub 1 2P MPN:EDS31MC2
Free Shipping
In Stock
The Motor Switch 20A 600V Dead-End Hub 1 2P is an essential component used to control the power supply to motors or other electrical loads in a wide range of applications. It features a compact, weatherproof design that makes it ideal for both indoor and outdoor installations. The switch includes a built-in overload protection circuit that safeguards against damage caused by excessive current flow, ensuring the longevity of the switch and the connected load. The 1 pole, 2 position design allows users to control the power supply to the motor or load by switching between two independent circuits. Its ability to handle up to 600V makes it suitable for use with a variety of electrical systems, making the Motor Switch 20A 600V Dead-End Hub 1 2P an essential tool for professional electricians and industrial settings alike.
Technical Specifications
- Item Motor Switch
- Amps AC 30 A
- Max. Voltage 600V AC
- Enclosure NEMA Rating 3, 7CD, 9EFG
- Hub Style Dead-End
- Hub Size 1 in
- Number of Gangs 1
- Description/Special Features Cast In Hubs
- No. of Thermal Units Required None
- Number of Poles 2
- Starter Type Manual
- Height 7.03 in
- Width 3.72 in
- Depth 5.31 in
- HP @ 120V 1 hp
- HP @ 240V 2 hp
- HP @ 480V 3 hp
- Standards UL508, UL 698, UL 1203, C22.2 No. 14-M, C22.2 No. 25, C22.2 No. 30, UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Groups E, F, G; and Class III
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDS31MC2
- MPN: EDS31MC2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Hazardous Location Manual Motor Switches and Start
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
