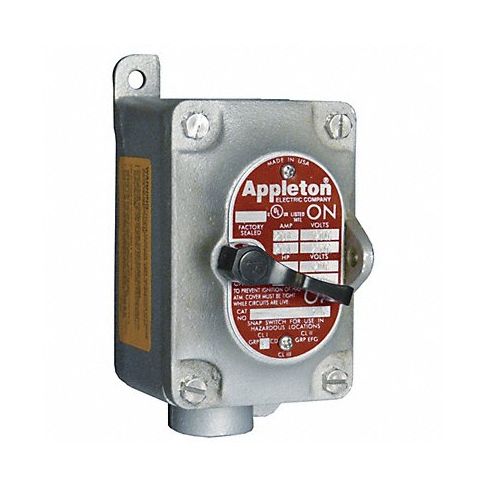

Motor Switch 30A 600V DeadEnd Hub 1/2 3P MPN:EDS11MC3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-13f809
Motor Switch 30A 600V DeadEnd Hub 1/2 3P
The motor switch is designed to meet UL489 hazardous location standards ensuring it's safe for use in high risk environments where explosive gases or dust may be present. Its current rating of 30 amps and voltage capacity of 600 volts make it ideal for operating heavy-duty industrial machinery while its NEMA Type 1/2 enclosure provides IP50 ratings, offering protection against dust and rain. This manual switch is easy to install with a dead end design allowing one or two motors to be easily controlled, making it useful in oil rigs, mills, mines, chemical plants, textile plants and many other locations where motors are utilized daily.
Hazardous Location Manual Motor Starters and SwitchesFeature Eaton internal starters. Motor starters require 1 thermal unit, sold separately. Enclosure dim.: 7.03"H x 3.72"W x 5.31"D. NEMA rated 3, 7CD, and 9EFG. UL Listed for Class I, Div. 1 and 2, Class II, Div. 1 and 2, and Class III.
Technical Specifications
- Item Motor Switch
- Amps AC 30 A
- Max. Voltage 600V AC
- Enclosure NEMA Rating 3, 7CD, 9EFG
- Hub Style Dead-End
- Hub Size 1/2 in
- Number of Gangs 1
- Description/Special Features Cast In Hubs
- No. of Thermal Units Required None
- Number of Poles 3
- Starter Type Manual
- Height 7.03 in
- Width 3.72 in
- Depth 5.31 in
- HP @ 120V 3 hp
- HP @ 240V 7 1/2 hp
- HP @ 480V 15 hp
- HP @ 600V 15 hp
- Standards UL508, UL 698, UL 1203, C22.2 No. 14-M, C22.2 No. 25, C22.2 No. 30, UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Groups E, F, G; and Class III
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDS11MC3
- MPN: EDS11MC3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Manual Motor Switches and Start
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC
Category: Starters and Contactors
