Front Cover 3-Way 1Gang 20A MPN:EDKF23W-Q
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-11y489

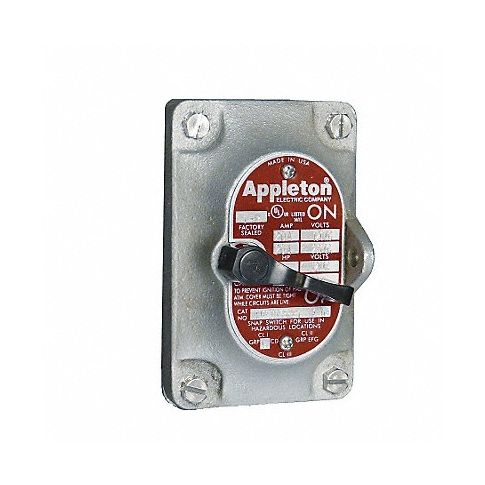

Front Cover 3-Way 1Gang 20A
This Appleton Electric Front Cover 3-Way 1Gang 20A is designed to provide reliable and durable switch performance in harsh environments. Its malleable iron construction makes it resistant to chemicals and corrosion, ensuring a long lifespan in process industries like refineries and chemical plants. The 3-way tumbler switch design allows for easy switching between lighting circuits, reducing the risk of arc faults and extending lamp life. Ideal for use with light power loads, this front cover can help prevent accidental activation and improve overall safety in industrial settings. With its high-quality materials and reliable performance, this Appleton Electric switch is an essential component for any industrial control system.
Top product features:
- Corrosion-resistant malleable iron construction for use in harsh environments
- Reliable 3-way tumbler switch design for easy switching between lighting circuits
- High amperage rating of 20A for handling light power loads
Top product applications:
- Lighting control in hazardous locations
- Heavy-duty switch for industrial and commercial use
- Electrical wiring connection in chemical plants and refineries
This tumbler switch front cover is designed to help prevent arcing during connect and disconnect operation of lighting and light power loads. It is suitable for installation in chemical plants, refineries, and other process industries. Use in classified areas where ignitable vapors, gases, and combustible dusts are present.
Technical Specifications
- Item Switch Assembly Front Cover
- Amps 20 A
- Voltage 120/277V AC
- Type of Operator Tumbler Switch
- Material Malleable Iron
- For Use With EDS Series Tumbler Switches
- HP 1 hp @ 120V AC and 2 hp @ 240V AC
- Legend Markings On/Off
- Height 4.63 in
- Width 3.0 in
- Depth 4.69 in
- Safety Rating UL 894, UL 1203, UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
- Number of Gangs 1
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EDKF23WQ
- MPN: EDKF23W-Q
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Hazardous Location Tumbler Switch Accessories
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121104
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Motor control centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC
Category: Switches
