Sealing Fitting Iron Trade Size 3/4in MPN:EYDEF75

Discount: See in Cart
Free Shipping
In Stock
Brand: Appleton Electric
Part #: EYDEF75
UPC: NULL
SKU
226-CXG-10W513
$186.29
Add to Wish List Add to Compare

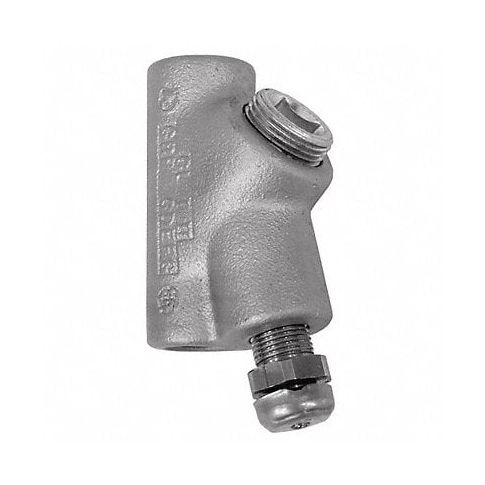

Sealing Fitting Iron Trade Size 3/4in

Appleton Electric's Sealing Fitting is designed for use with threaded rigid metal conduit and IMC in hazardous environments. It prevents the passage of gases, vapors or flames, while restricting any explosion to the sealed-off enclosure. The smooth, rounded integral bushing protects conductor insulation, ensuring tight, rigid joints and ground continuity. Ideal for oil and gas, chemical plants, and marine vessels, this product offers a durable and reliable solution for industrial applications where safety is of the utmost importance. With its accurate tapered threads and Malleable Iron construction, the Sealing Fitting provides unmatched performance and long-lasting durability.

Top product features:

  • Explosionproof construction: Ensures safe use in hazardous environments.
  • Dust-ignitionproof design: Prevents accidental ignitions in dusty areas.
  • Raintight protection: Keeps the conduit system free from water damage and corrosion.

Top product applications:

  • Use in oil and gas refineries where vapors and gases need to be contained.
  • In chemical plants to prevent accidental ignition and protect against corrosion.
  • Aboard ships or marine vessels to maintain conduit integrity in wet environments.
Explosionproof, dust-ignitionproof, and raintight, this sealing fitting is for use with threaded rigid metal conduit and IMC. It prevents the passage of gases, vapors, or flames from one portion of a conduit system to another. It restricts any explosion to the sealed-off enclosure, and prevents pressure piling within the conduit system. A smooth, rounded integral bushing in each hub protects conductor insulation. The accurately tapped, tapered threads provide tight, rigid joints and ground continuity.

Technical Specifications

  • Item - Conduit Fitting 40% Fill, Sealing Fitting
  • Ends - Hazardous Fittings 3/4 in FNPT x 3/4 in MNPT
  • Conduit Fitting Material Malleable Iron
  • Conduit Orientation - Sealing Fitting Vertical
  • Overall Length - Fitting 4 5/16 in
  • Hazardous Location Rating Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
  • Standards CSA C22.2 No 30, UL 886
  • Application Prevent Passage Of Gases, Vapors Or Flames From One Portion Of Conduit Systems To Another

Manufacturer Details

  • Manufacturer: Appleton Electric
  • Condensed Mfg Number: EYDEF75
  • MPN: EYDEF75

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: MX
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 7326908688
  • GDS Category Name: Hazardous Location Sealing Fittings
  • GDS Family Name: Conduit Fittings
  • GDS Segment Name: Electrical
  • UNSPSC: 39121202
  • UNSPSC Class ID: 12
  • UNSPSC Commodity Name: Wire management components and busways
  • UNSPSC Commodity ID: 02
  • UNSPSC Commodity Name: Electrical conduit
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
