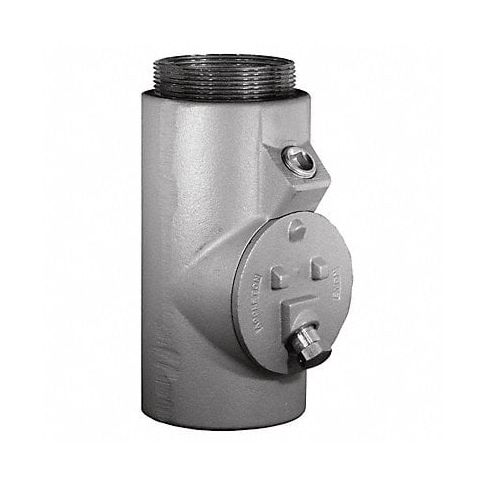

Sealing Fitting Iron Trade Size 3.5in MPN:EYD-96
SKU
226-cxg-10w493
Sealing Fitting Iron Trade Size 3.5in
A versatile sealing fitting designed for metal pipes measuring at trade size 3.5 inches, is made from durable cast iron, which prevents water leakage or damage with its tight seal against pressure variations. This fitting has a 15-degree angle on each end that ensures proper flow direction, while also being able to swivel by 360 degrees without causing stress. Additionally, it's got male threads at both sides for easy assembly, requiring no additional accessories when installing this iron sealing fitting.
Explosionproof, dust-ignitionproof, and raintight, this sealing fitting is for use with threaded rigid metal conduit and IMC. It prevents the passage of gases, vapors, or flames from one portion of a conduit system to another. It restricts any explosion to the sealed-off enclosure, and prevents pressure piling within the conduit system. A smooth, rounded integral bushing in each hub protects conductor insulation. The accurately tapped, tapered threads provide tight, rigid joints and ground continuity.
Technical Specifications
- Item - Conduit Fitting 25% Fill, Sealing Fitting
- Ends - Hazardous Fittings 3-1/2 in FNPT x 3-1/2 in MNPT
- Conduit Fitting Material Grayloy Iron
- Conduit Orientation - Sealing Fitting Vertical
- Overall Length - Fitting 9 3/16 in
- Hazardous Location Rating Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standards CSA C22.2 No 30, UL 886
- Application Prevent Passage Of Gases, Vapors Or Flames From One Portion Of Conduit Systems To Another
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: EYD96
- MPN: EYD-96
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7326908688
- GDS Category Name: Hazardous Location Sealing Fittings
- GDS Family Name: Conduit Fittings
- GDS Segment Name: Electrical
- UNSPSC: 39121202
- UNSPSC Class ID: 12
- UNSPSC Commodity Name: Wire management components and busways
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Electrical conduit
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 12:30pm UTC
Category: Conduit Fittings
