Sealing Fitting Iron Trade Size 3.5in MPN:EYF-350

Discount: See in Cart
Free Shipping
In Stock
Brand: Appleton Electric
Part #: EYF-350
UPC: NULL
SKU
226-cxg-10v019
$726.29

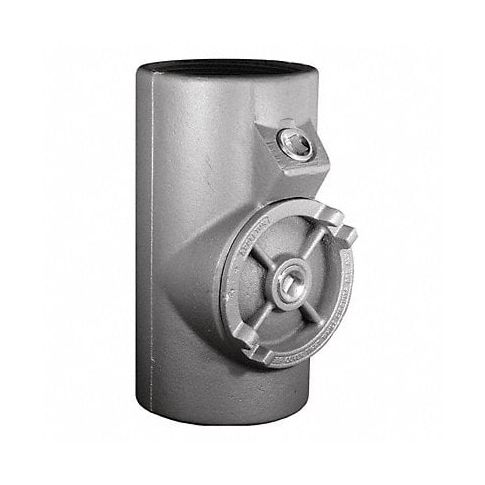

Sealing Fitting Iron Trade Size 3.5in

Introducing Appleton Electric's explosionproof sealing fitting specifically designed for hazardous environments. This durable fitting prevents the passage of gases, vapors or flames from one portion of a conduit system to another, while also restricting any explosion within a sealed-off enclosure. Its rounded integral bushing protects conductor insulation, ensuring secure and reliable connections. The 3.5 inch size makes it suitable for various applications, including chemical processing plants, oil and gas refineries, or anywhere that requires safe electrical installations. Additionally, the fitting's malleable iron construction ensures its longevity and resistance to wear and tear. Upgrade your safety protocols today with Appleton Electric's explosionproof sealing fitting for threaded rigid metal conduit or IMC installations.

Top product features:

  • Explosionproof Ensures safe and secure electrical installations in hazardous environments.
  • Dust-ignitionproof Prevents accidental ignitions from occurring, ensuring user safety.
  • Raintight Keeps electrical components dry and functioning properly in wet conditions.

Top product applications:

  • Chemical and petrochemical plants Provides explosionproof sealing for electrical components in hazardous areas to prevent ignition sources and protect against gas or vapor leaks.
  • Oil and gas refineries Ensures secure electrical connections and conduit system integrity in potentially flammable atmospheres, protecting equipment and personnel from potential explosion risks.
  • Mining operations Provides explosionproof sealing for underground installations where gases, vapors or combustible materials may be present, ensuring safe electrical connections and preventing ignition sources.
Explosionproof, dust-ignitionproof, and raintight, this sealing fitting is for use with threaded rigid metal conduit and IMC. It prevents the passage of gases, vapors, or flames from one portion of a conduit system to another. It restricts any explosion to the sealed-off enclosure, and prevents pressure piling within the conduit system. A smooth, rounded integral bushing in each hub protects conductor insulation. The accurately tapped, tapered threads provide tight, rigid joints and ground continuity.

Technical Specifications

  • Item - Conduit Fitting 25% Fill, Sealing Fitting
  • Ends - Hazardous Fittings 3-1/2 in FNPT x 3-1/2 in FNPT
  • Conduit Fitting Material Malleable Iron
  • Conduit Orientation - Sealing Fitting Horizontal, Vertical
  • Overall Length - Fitting 8 15/16 in
  • Hazardous Location Rating Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
  • Standards CSA C22.2 No 30, UL 886
  • Application Prevent Passage Of Gases, Vapors Or Flames From One Portion Of Conduit Systems To Another

Manufacturer Details

  • Manufacturer: Appleton Electric
  • Condensed Mfg Number: EYF350
  • MPN: EYF-350

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: MX
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 7326908688
  • GDS Category Name: Hazardous Location Sealing Fittings
  • GDS Family Name: Conduit Fittings
  • GDS Segment Name: Electrical
  • UNSPSC: 39121202
  • UNSPSC Class ID: 12
  • UNSPSC Commodity Name: Wire management components and busways
  • UNSPSC Commodity ID: 02
  • UNSPSC Commodity Name: Electrical conduit
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
