Sealing Fitting Iron Trade Size 3/4in MPN:EYDM-75

Discount: See in Cart
Free Shipping
In Stock
Brand: Appleton Electric
Part #: EYDM-75
UPC: 078138123007
SKU
226-CXG-10V005
$161.49

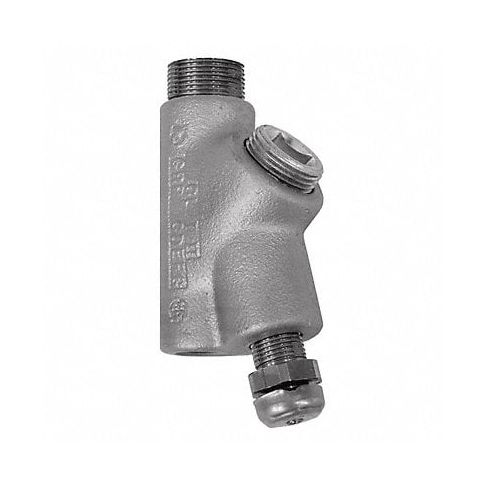

Sealing Fitting Iron Trade Size 3/4in

The Appleton Electric Sealing Fitting Iron Trade Size 3/4in is an explosionproof, dust-ignitionproof, and raintight fitting designed to prevent the passage of gases, vapors, or flames from one portion of a conduit system to another. With accurately tapped, tapered threads providing tight, rigid joints and ground continuity, this fitting is ideal for use in hazardous locations where safety and reliability are essential. The sealing fitting's 25% fill and smooth, rounded integral bushing protect conductor insulation while restricting any explosion to the sealed-off enclosure, preventing pressure piling within the conduit system. Suitable for use in vertical conduit orientations, this malleable iron fitting offers excellent durability and strength making it an ideal choice for various industries such as oil and gas, petrochemical, and chemical processing.

Top product features:

  • Explosionproof and Dust-Ignitionproof: Ensures safe use in hazardous locations by preventing ignition of flammable gases or dust.
  • Raintight: Protects against the entry of water, keeping the conduit system dry and free from water damage.
  • Accurately tapped, tapered threads: Provides a tight, rigid connection ensuring ground continuity for reliable electrical service.

Top product applications:

  • Hazardous locations where explosive or combustible gases and dust are present, such as oil refineries, chemical plants, and mining facilities.
  • Conduit systems that require a watertight seal to prevent water damage and corrosion, such as outdoor installations, industrial wash-down areas, and marine environments.
  • In vertical conduit orientations where a tight seal is necessary, such as in elevator shafts, lift wells, and chimneys.
Explosionproof, dust-ignitionproof, and raintight, this sealing fitting is for use with threaded rigid metal conduit and IMC. It prevents the passage of gases, vapors, or flames from one portion of a conduit system to another. It restricts any explosion to the sealed-off enclosure, and prevents pressure piling within the conduit system. A smooth, rounded integral bushing in each hub protects conductor insulation. The accurately tapped, tapered threads provide tight, rigid joints and ground continuity.

Technical Specifications

  • Item - Conduit Fitting 25% Fill, Sealing Fitting
  • Ends - Hazardous Fittings 3/4 in FNPT x 3/4 in MNPT
  • Conduit Fitting Material Malleable Iron
  • Conduit Orientation - Sealing Fitting Vertical
  • Overall Length - Fitting 3 5/8 in
  • Hazardous Location Rating Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
  • Standards CSA C22.2 No 30, UL 886
  • Application Prevent Passage Of Gases, Vapors Or Flames From One Portion Of Conduit Systems To Another

Manufacturer Details

  • Manufacturer: Appleton Electric
  • Condensed Mfg Number: EYDM75
  • MPN: EYDM-75

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: MX
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 7326908688
  • GDS Category Name: Hazardous Location Sealing Fittings
  • GDS Family Name: Conduit Fittings
  • GDS Segment Name: Electrical
  • UNSPSC: 39121202
  • UNSPSC Class ID: 12
  • UNSPSC Commodity Name: Wire management components and busways
  • UNSPSC Commodity ID: 02
  • UNSPSC Commodity Name: Electrical conduit
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B087QPK157, B008SBU3HS, B0086AHEA0
