Cable Pull Sw HazLoc Dbl End 25Lbs SPDT MPN:AFUX0333-88
SKU
226-cxg-10k886

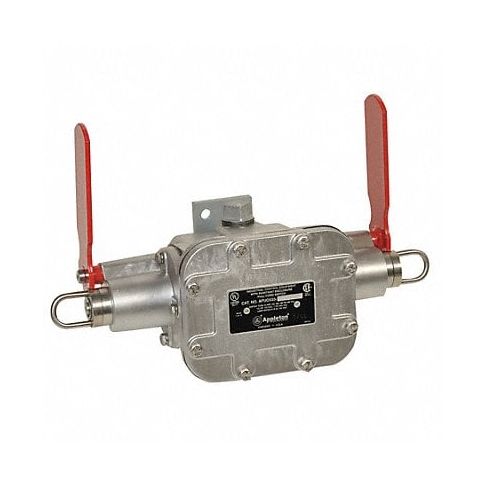

Cable Pull Sw HazLoc Dbl End 25Lbs SPDT
This cable pull switch from Appleton Electric is a reliable and durable solution for emergency stop or normal stop applications where alarm or computer interface capabilities are required. Designed for use in demanding industrial environments, it features a cast-aluminum housing and torsion spring for positive flag arm actuation. Ideal for use in steel mills, automotive assembly lines, warehouses, loading docks, and other industrial processes, this switch provides maintained switching ability with dual cable operation and a 25-pound operating force. Its double-end mounting style makes it easy to install and use in a variety of settings.
Top product features:
- The product has a cast-aluminum housing for durability and resistance to wear and tear.
- It features a torsion spring for positive flag arm actuation, ensuring reliable and consistent operation.
- The product is designed for use in hazardous locations, making it suitable for applications in steel mills, automotive assembly lines, and other industrial processes.
Top product applications:
- Steel mills
- Automotive assembly lines
- Warehouses
This cable pull switch is designed to help users signal an emergency stop or normal stop where alarm or computer interface capabilities are needed. It features cast-aluminum housing and a torsion spring for positive flag arm actuation. Use in steel mills, automotive assembly lines, warehouses, loading docks, and various industrial processes.
Technical Specifications
- Item Emergency Cable Pull Switch
- Switch Function Maintained
- Switching Ability Dual Cable
- Operating Force 25 lb
- Mounting Style Double End
- Contact Form SPDT
- NEMA Rating 7CD, 9EFG
- AC Contact Rating 20A @ 125/250/480V AC
- DC Contact Rating 0.25A @ 250V DC, 0.50A @ 125V DC
- HP 1.0 hp @ 125V AC, 2.0 hp @ 250V AC
- Indicator Flag Arm
- Reset Actuator
- Length 16.7 in
- Width 11.0 in
- Depth 7.7 in
- Max. Cable Span 200 ft
- Case Material Cast Aluminum
- Wiring Entry Two 1 in Conduit Openings
- Standards UL 1203, UL 508, UL 698
- Safety Rating UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AFUX033388
- MPN: AFUX0333-88
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Hazardous Location Cable Pull Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Snap switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
