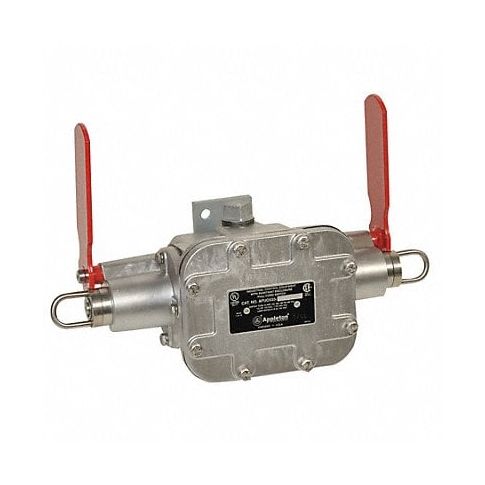

Cable Pull Sw HazLoc Dbl End 25Lbs SPDT MPN:AFUX0333-44

Discount: See in Cart
Free Shipping
In Stock
Brand: Appleton Electric
Part #: AFUX0333-44
SKU
226-CXG-10K883
$3,483.29
Add to Wish List Add to Compare
Cable Pull Sw HazLoc Dbl End 25Lbs SPDT

The Emergency Cable Pull Switch from Appleton Electric is designed to provide a reliable and safe solution for signaling emergency stops or normal stops in various industrial environments. Its cast-aluminum housing ensures durability and long-lasting performance, while the torsion spring gives positive flag arm actuation. With a maintained switch function and dual cable switching ability, this switch offers versatility and efficiency in a range of applications. Its 25 lb operating force makes it suitable for harsh environments where heavy-duty operations are performed. Whether you need it for steel mills, automotive assembly lines, warehouses, or loading docks, the Emergency Cable Pull Switch delivers exceptional performance and reliability to help keep your operations running smoothly and safely.

Top product features:

  • Cast-aluminum housing for durability and long-lasting performance.
  • Torsion spring for positive flag arm actuation.
  • Maintained switch function for versatility in various industrial processes.

Top product applications:

  • Signaling emergency stops in industrial settings such as steel mills and automotive assembly lines.
  • Indicating normal stop operations in various industries like warehouses and loading docks.
  • Use as a part of an alarm or computer interface system in industrial processes to monitor and control operations.
This cable pull switch is designed to help users signal an emergency stop or normal stop where alarm or computer interface capabilities are needed. It features cast-aluminum housing and a torsion spring for positive flag arm actuation. Use in steel mills, automotive assembly lines, warehouses, loading docks, and various industrial processes.

Technical Specifications

  • Item Emergency Cable Pull Switch
  • Switch Function Maintained
  • Switching Ability Dual Cable
  • Operating Force 25 lb
  • Mounting Style Double End
  • Contact Form SPDT
  • NEMA Rating 7CD, 9EFG
  • AC Contact Rating 20A @ 125/250/480V AC
  • DC Contact Rating 0.25A @ 250V DC, 0.50A @ 125V DC
  • HP 1.0 hp @ 125V AC, 2.0 hp @ 250V AC
  • Indicator Flag Arm
  • Reset Actuator
  • Length 16.7 in
  • Width 11.0 in
  • Depth 7.7 in
  • Max. Cable Span 200 ft
  • Case Material Cast Aluminum
  • Wiring Entry Two 1 in Conduit Openings
  • Standards UL 1203, UL 508, UL 698
  • Safety Rating UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III

Manufacturer Details

  • Manufacturer: Appleton Electric
  • Condensed Mfg Number: AFUX033344
  • MPN: AFUX0333-44

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • GDS Category Name: Hazardous Location Cable Pull Switches
  • GDS Family Name: Switches
  • GDS Segment Name: Electrical
  • UNSPSC: 39121505
  • UNSPSC Class ID: 15
  • UNSPSC Commodity Name: Switches and controls and relays and accessories
  • UNSPSC Commodity ID: 05
  • UNSPSC Commodity Name: Snap switches
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
