Cable Pull Switch 20A Right 25 lbs SPDT MPN:AFU0333-80
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-10k858

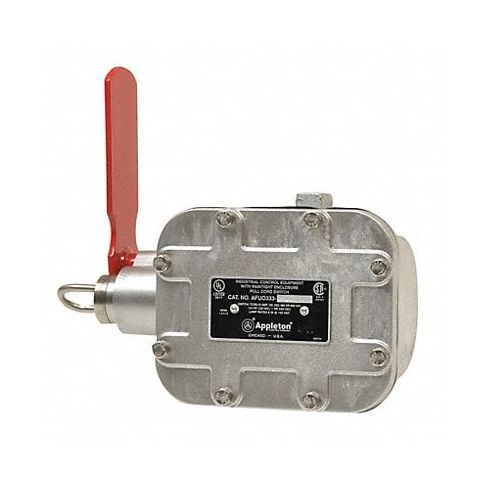

Cable Pull Switch 20A Right 25 lbs SPDT
The Appleton Electric Cable Pull Switch is a reliable and durable solution for signaling emergency stops or normal stops in various industrial settings. Its cast-aluminum housing and torsion spring ensure positive flag arm actuation, providing a clear indication of operation. Suitable for use in steel mills, automotive assembly lines, warehouses, loading docks, and other industrial processes, this switch offers maintained functionality, allowing it to remain in the last position even after power loss. Its 20A AC contact rating and 1NC/1NO contact form make it a versatile and efficient choice for alarm or computer interface applications.
Top product features:
- The cable pull switch has a torsion spring for positive flag arm actuation.
- The product features a cast-aluminum housing.
- The switch has a maintained function.
Top product applications:
- Steel mills
- Automotive assembly lines
- Warehouses
This cable pull switch is designed to help users signal an emergency stop or normal stop where alarm or computer interface capabilities are needed. It features cast-aluminum housing and a torsion spring for positive flag arm actuation. Use in steel mills, automotive assembly lines, warehouses, loading docks, and various industrial processes.
Technical Specifications
- Item Emergency Cable Pull Switch
- Switch Function Maintained
- Mounting Style Single End
- AC Contact Rating 20A @ 125/250/480V AC
- Contact Form 1NC/1NO
- Reset Actuator
- Max. Cable Span 200 ft
- Operating Force 25 lb
- NEMA Rating 12, 3, 4, 4X
- Indicator Flag Arm
- Cable Connection Location Left
- Thermal Amperage 20 A
- Length 11.5 in
- Width 8.2 in
- Depth 7.7 in
- Switching Ability Single Cable
- DC Contact Rating 0.25A @ 250 V DC, 0.5A @ 125 V DC
- Min. Current Not Applicable
- Case Material Cast Aluminum
- Wiring Entry Two 1 in Conduit Openings
- IP Rating Not Rated
- For Use With Conveyor Control Switch
- Standards UL 1203, UL 508, UL 698
Manufacturer Details
- Manufacturer: Appleton Electric
- Condensed Mfg Number: AFU033380
- MPN: AFU0333-80
