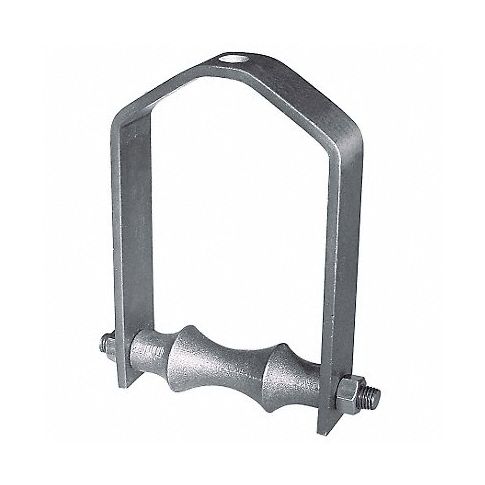

Pipe Roll w/Steel Yoke Galv 3 1/2 In MPN:0560508152
Pipe Roll w/Steel Yoke Galv 3 1/2 In
This steel pipe roll with a 3-5/8 diameter is ideal for facility maintenance or cleaning tasks that require versatility and maneuverability. Its welded yoke provides durability and support for rolling heavy duty tools such as wire brushes, scouring pads, and scrubbing brushes. The galvanized finish resists rust and corrosion in wet environments like pipelines, restrooms or drainage systems where cleanliness is critical to prevent health hazards. Its sturdy construction supports prolonged use, reducing the need for replacements, while its compact size ensures ease of storage when not in use, optimizing workflow efficiency and cost-effectiveness across various facilities like commercial buildings, factories, or public utilities.
Pipe Rolls with Steel Yoke • Max. temp.: 450°F at rollerUse for suspending pipe from a single rod where horizontal movement may occur due to expansion or contraction. Meet Federal Specifications A-A-1192A (Type 43) and WW-H-171E (Type 44), as well as ANSI/MSS SP-69 and MSS SP-58 (Type 43).
Technical Specifications
- Item Pipe Roll with Steel Yoke
- Type Adjustable
- Material Cast Iron
- Pipe Size 3 1/2 in
- Max. Load 390
- Max. Temp. 450 Degrees F At Roller
- Rod Size 1/2 in
- Length 7 in
- Width 4 3/8 in
- Metal Detectable Yes
- Standards and Approvals A-A-1192A (Type 43), ANSI/MSS SP-69, MSS SP-58 (Type 43), WW-H-171E (Type 44)
Manufacturer Details
- Manufacturer: Anvil
- Condensed Mfg Number: 0560508152
- MPN: 0560508152
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pipe Supports
- GDS Family Name: Pipe and Tubing
- GDS Segment Name: Plumbing
- UNSPSC: 20122824
- UNSPSC Class ID: 28
- UNSPSC Commodity Name: Drilling and workover rigs and equipment
- UNSPSC Commodity ID: 24
- UNSPSC Commodity Name: Pipe handling equipment
- UNSPSC Family ID: 12
- UNSPSC Family Name: Oil and gas drilling and exploration equipment
- UNSPSC Segment ID: 20
- UNSPSC Segment Name: Mining and Well Drilling Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:14pm UTC
Category: Pipe and Tubing
