90 Reducing Elbow Cast Iron 2 x 1 in MPN:0300014602

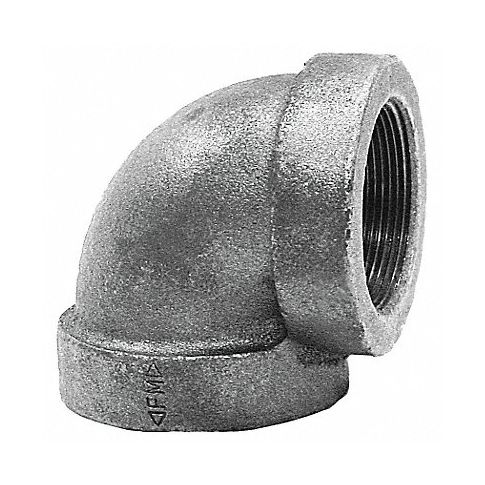

90 Reducing Elbow Cast Iron 2 x 1 in
The cast iron reducing elbow is designed to provide a seamless connection between two pipes that have varying diameter sizes while maintaining the flow at a 90-degree angle. It's ideal for various industries, including plumbing and irrigation systems where angular change is needed smoothly. Its robust construction prevents bursts or leaks caused by high pressure while ensuring chemical resistance even in harsh environments, thus preserving the connection's durability ahead. The compatible cast iron material allows it to be used with most metals, ensuring versatility for various applications including plumbing or industrial uses without corroding away over time hence leading continued success stories per task at hand.
Black Cast-Iron Threaded Pipe Fittings—Class 125 • Max. pressure: 175 psi WOG; 125 psi saturated steam Temp. range: -20° to 150°FDesigned for use in fire protection applications. Sizes 1/4" to 4" NPS are included in the “List of Inspected Fire Protection Equipment and Materials” issued by the Underwriters’ Laboratories, Inc. NPT threads.UL Listed; FM Approved; meet ASME B16.4.
Technical Specifications
- Item Elbow, 90 Degrees
- Pipe Fitting Material Cast Iron
- Fitting Schedule/Class Class 125
- Pipe Size - Pipe Fitting 2 in x 1 in
- Fitting Connection Type FNPT
- Standards UL: FM Approved: ASME B16.4
- Max. Pressure 175 psi@-20 Degrees to 150 Degrees F
- Saturated Steam Pressure 125 psi
- Temp. Range -20 Degrees to 150 Degrees F
Manufacturer Details
- Manufacturer: Anvil
- Condensed Mfg Number: 0300014602
- MPN: 0300014602
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307110030
- GDS Category Name: Metal Pipe Fittings
- GDS Family Name: Pipe Fittings and Couplings
- GDS Segment Name: Plumbing
- UNSPSC: 40142317
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 17
- UNSPSC Commodity Name: Pipe elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 26, 2024 1:02pm UTC
Category: Pipe Fittings and Couplings
