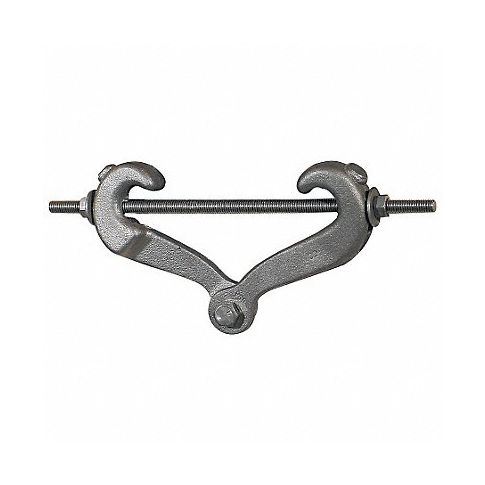

Beam Clamp Rod Sz 7/8 In Malleable Iron MPN:0500095401
SKU
226-CXG-4HYR2
Beam Clamp Rod Sz 7/8 In Malleable Iron
Introducing the Beam Clamp Rod from Anvil, perfect for structural steel attachment and tie rods installation. With its versatile design, this clamp swings from vertical to provide flexibility at the beam clamp. It's ideal for flange thicknesses of up to 0.60 inch and can withstand a maximum load of 1,365 lbs. Made from high-quality malleable iron, the Beam Clamp Rod is durable and reliable, making it an excellent choice for various applications, such as commercial or residential construction projects, factories, warehouses, and other industrial settings. Upgrade your equipment and get a clamp that delivers exceptional performance and longevity with Anvil's Beam Clamp Rod.
Top product features:
- Adjustable tie rods to provide flexibility at the beam clamp
- Durable and reliable material made from malleable iron
- Can withstand a maximum load of 1,365 lbs
Top product applications:
- Securing steel beams to structural frames
- Installing suspended ceilings in commercial spaces
- Providing support for piping and ductwork systems
Use this clamp for attachment to structural steel; use where flange thickness does not exceed 0.60". Tighten the nuts to lock the tie rods in place. The hanger rod swings from vertical, to provide flexibility at the beam clamp.
Technical Specifications
- Item Beam Clamp
- Type w/Out Extension
- Rod Size 7/8 in
- Max. Load (Lb.) 1,365
- Material Malleable Iron
- Bolt Size (In.) 7/16
- Beam Width 2 3/8 to 7 in
- Metal Detectable Yes
- Description/Special Features For Attachment To Structural Steel. Use In Conjunction With Beams Where Beam Widths Are From 2 3/8 in Minimum To 7 in Maximum And Flange Thickness Does Not Exceed 0.60 in
- Includes Nuts And Washer
- Standards A-A-1192A (Type 30), and ANSI/MSS SP-58 (Type 30)., ANSI/MSS SP-69, WW-H-171-E (Type 30)
Manufacturer Details
- Manufacturer: Anvil
- Condensed Mfg Number: 0500095401
- MPN: 0500095401
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7325995000
- GDS Category Name: Pipe Hangers and Clamps
- GDS Family Name: Pipe and Tubing
- GDS Segment Name: Plumbing
- UNSPSC: 31162905
- UNSPSC Class ID: 29
- UNSPSC Commodity Name: Clamps
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Beam clamps
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
