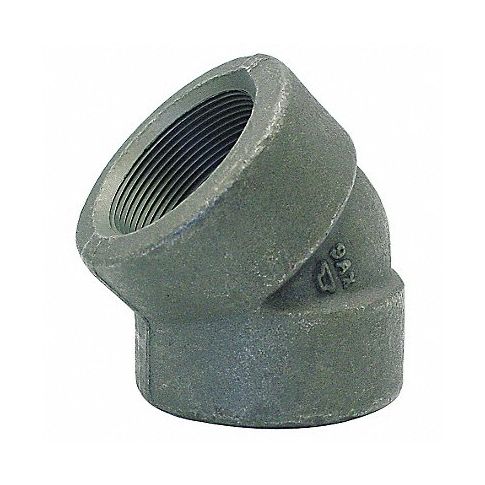

45 Elbow Forged Steel 3/4 in FNPT MPN:0361110802
SKU
226-CXG-29JD97
45 Elbow Forged Steel 3/4 in FNPT
The 45-degree elbow is a forged steel coupling fitting suitable for industrial settings that need directional changes, designed to connect pipes or tubes smoothly at an angle of 45 degrees with Female National Pipe Thread (FNPT) connection type and ideal for high pressure applications. It's commonly used in metal pipe fittings for construction, plumbing or heating systems where it offers durability while simplifying assembly with its watertight seal when tightened securely into place.
Thick-walled Anvil® elbow offers you a simple, economical installation and is ideal for use with water and oil in chemical, petrochemical, pulp, paper, shipbuilding, waste incineration, and semiconductor industry applications.
Technical Specifications
- Item Elbow, 45 Degrees
- Pipe Fitting Material Black Forged Steel
- Fitting Schedule/Class Class 3000
- Pipe Size - Pipe Fitting 3/4 in
- Fitting Connection Type FNPT
- Standards ASME B16.11, ASTM A106, B1.20.1
- Max. Pressure 2000 psi @ 150 Degrees F
- Saturated Steam Pressure 300 psi @ 550 Degrees F
- Outside Dia. 1 13/16 in
- Number of Holes 2
- Temp. Range -20 Degrees to 550 Degrees F
Manufacturer Details
- Manufacturer: Anvil
- Condensed Mfg Number: 0361110802
- MPN: 0361110802
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307110030
- GDS Category Name: Metal Pipe Fittings
- GDS Family Name: Pipe Fittings and Couplings
- GDS Segment Name: Plumbing
- UNSPSC: 40142317
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 17
- UNSPSC Commodity Name: Pipe elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
