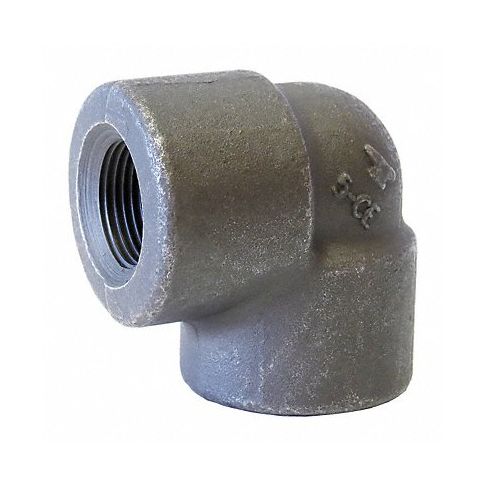

90 Elbow Forged Steel 3 in Female NPT MPN:0361102205
90 Elbow Forged Steel 3 in Female NPT
The 90-degree elbow made of forged steel with a female NPT 3 thread ensures superior durability and strength, perfect for industrial or commercial piping systems requiring reliable connections. The bent shape allows easy installation in tight spaces while minimizing stress points improving overall structural integrity. It is an ideal component in air, water, oil, gas, and other fluids transfer applications where a 90-degree connection is needed. It is suitable for use with NPT 3 threads and commonly used in plumbing, heating, cooling, industrial plants, refineries, and more in the Pipe Fittings and Couplings sector.
Thick-walled fitting offers you a simple, economical installation and is ideal for use with water and oil in chemical, petrochemical, pulp, paper, shipbuilding, waste incineration, and semiconductor industry applications.
Technical Specifications
- Item Elbow, 90 Degrees
- Pipe Fitting Material Black Forged Steel
- Fitting Schedule/Class Class 3000
- Pipe Size - Pipe Fitting 3 in
- Fitting Connection Type FNPT
- Standards ASME B16.11, ASTM A106, B1.20.1
- Max. Pressure 1000 psi @ 150 Degrees F
- Saturated Steam Pressure 300 psi @ 550 Degrees F
- Outside Dia. 4 3/4 in
- Number of Holes 2
- Temp. Range -20 Degrees to 550 Degrees F
Manufacturer Details
- Manufacturer: Anvil
- Condensed Mfg Number: 0361102205
- MPN: 0361102205
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307110030
- GDS Category Name: Metal Pipe Fittings
- GDS Family Name: Pipe Fittings and Couplings
- GDS Segment Name: Plumbing
- UNSPSC: 40142317
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 17
- UNSPSC Commodity Name: Pipe elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 26, 2024 1:02pm UTC
Category: Pipe Fittings and Couplings
